Figure 3 of Li, Mol Vis 2008; 14:378-386.

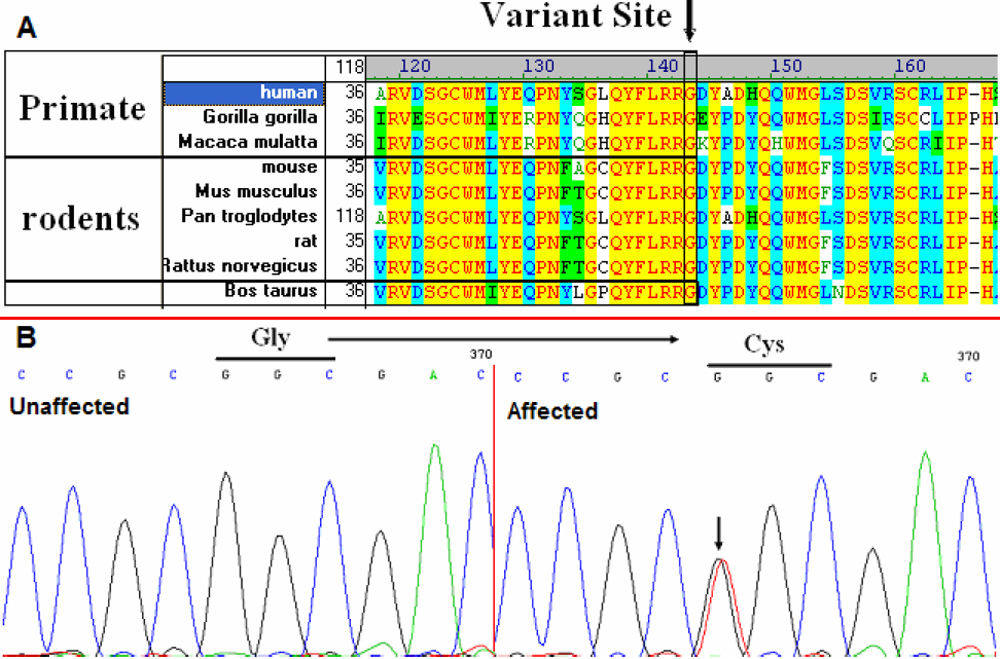

Figure 3. Multiple-sequence alignment and DNA sequence chromatograms of the CRYGD gene. A: Multiple-sequence alignment of CRYGD from primates, rodents, and cattle, to humans (Homo sapiens). The Gly61 residue is located within a highly conserved region. B: DNA sequence chromatograms of the P.G61C mutation in CRYGD. The G→T transversion at position 181 resulted in the P.G61C mutation.
