Figure 2 of
Duan, Mol Vis 2008; 14:370-377.

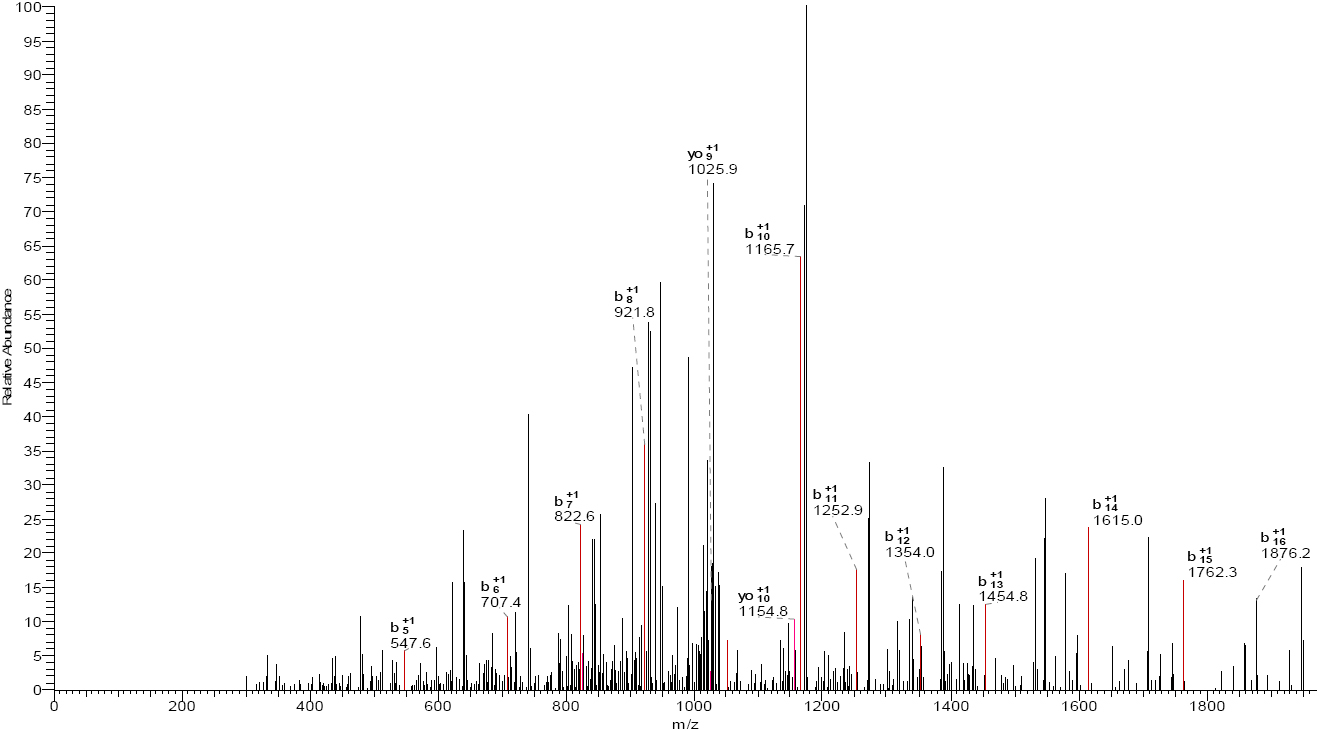

Figure 2.
MS/MS spectrum of vitamin D-binding protein derived peptide. The vitamin D-binding protein peptide, SLGECCDVEDSTTCFNAK ([M+H]
2+
=1047.63), was identified using this spectrum, which showed many characteristic y and b series ions.
