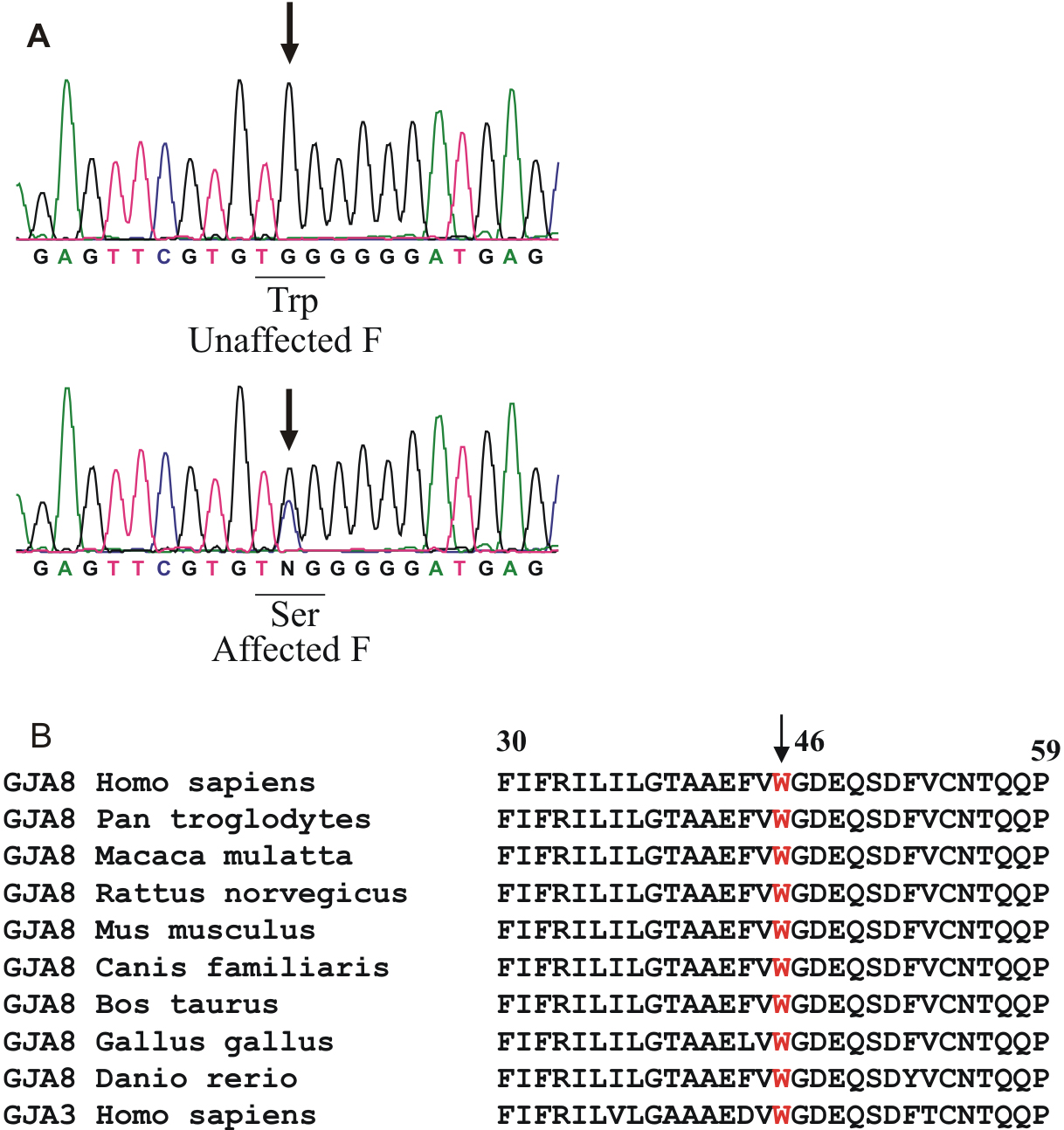

Figure 3. DNA sequence of a part of GJA8
from an unaffected and an affected individual with jelly-fish like
cataract followed by a multiple alignment of partial amino acid
sequences of connexin 50 from different species and of connexin 46 from
homo sapiens. A: DNA sequence analysis of a part of GJA8
from an unaffected and an affected individual are displayed in the
electropherograms (forward strand; individuals II:3 and II:5,
respectively). The wild-type G in the sequence of the unaffected
individual and the heterozygous c.134G→C change resulting in
substitution of tryptophan-45 by serine (p.W45S) in the affected
individual’s sequence are indicated by arrows. F indicates the portion
of GJA8 sequence, the forward strand, in the unaffected and
affected individuals. B: A multiple alignment of partial amino
acid sequences of connexin 50 from different species and of connexin 46
from Homo sapiens is shown. The alignment data indicate that
tryptophan at position 45 (indicated by an arrow) is highly conserved
in different species in connexin 50 and also in connexin 46 in Homo
sapiens.
