Figure 5 of Trinh, Mol Vis 2008; 14:2428-2434.

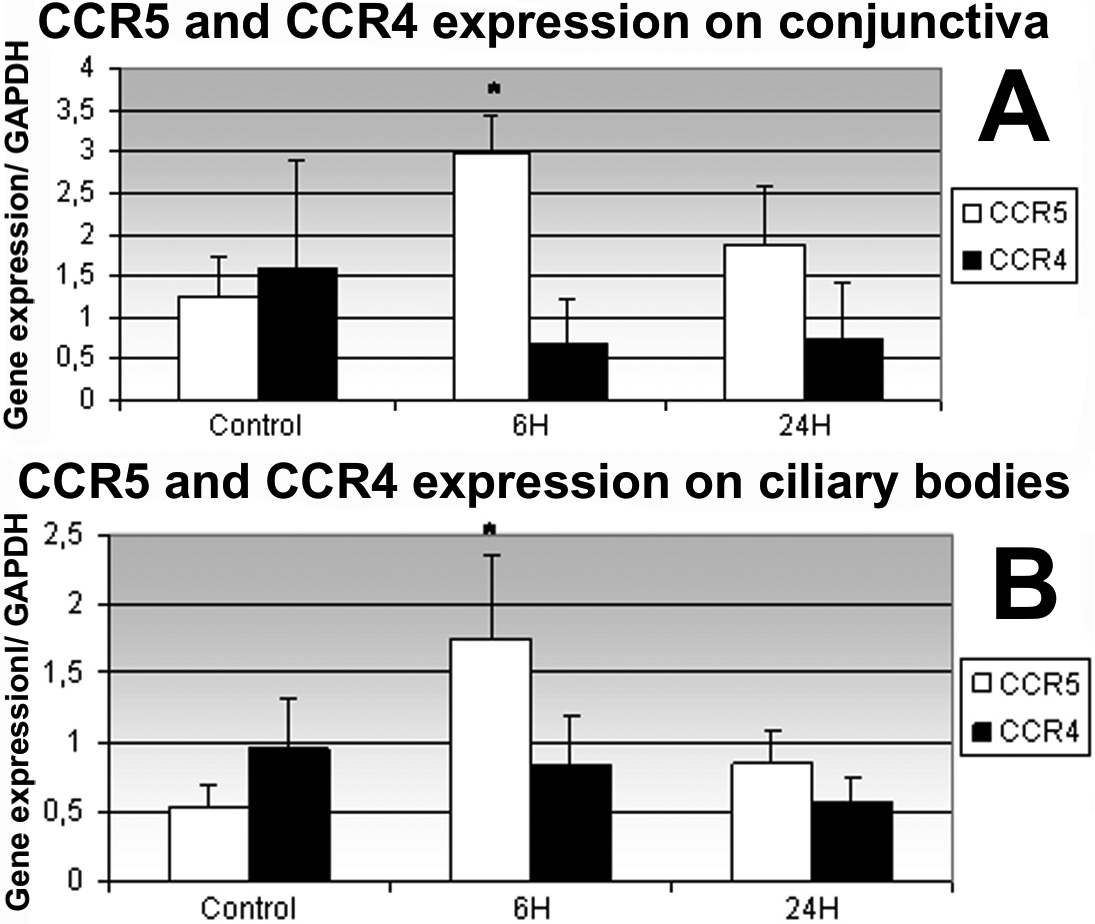

Figure 5. Quantification of mRNA expression of CCR5 and CCR4 in conjunctiva and ciliary bodies by real time-PCR. Semi-quantitative real-time PCR in the conjunctiva (A) and the ciliary body (B) was performed to measure the expression of CCR5 and CCR4 normalized to the levels of the endogenous control, GAPDH, in control rats and in rats with EIU 6 h and 24 h after LPS injection. Data shown are the mean±SD. An asterisk denotes that there is a significant difference between the control and EIU rats at 24 h (p<0.05).
