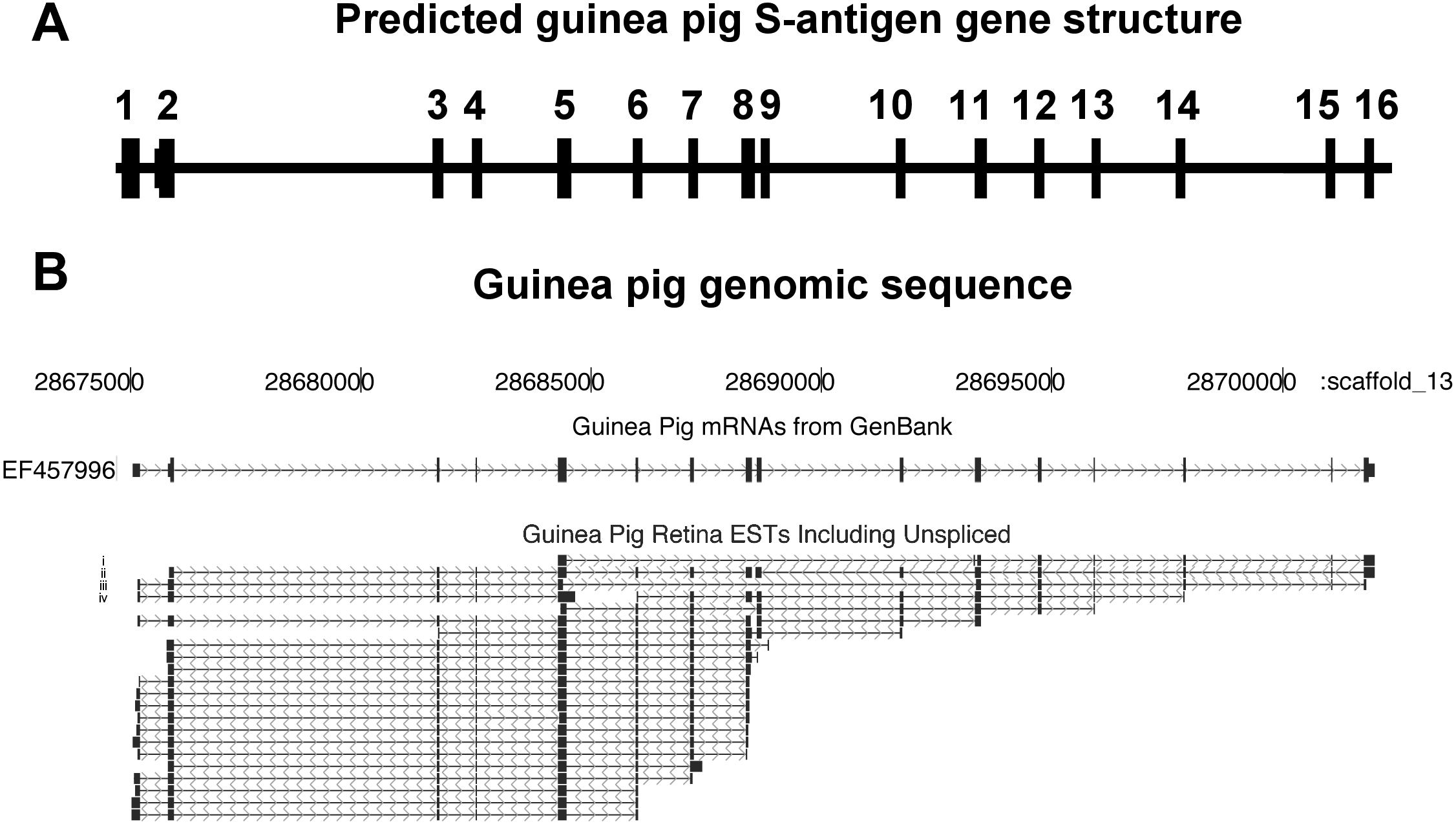

Figure 6. Alternate splicing in the guinea
pig
S-antigen gene.
A: Predicted guinea pig
S-antigen
gene structure from guinea pig retina
S-antigen ESTs.
B:
ESTs aligned to guinea pig genome (scaffold_13) and guinea pig mRNA
from GenBank for
S-antigen (
Sag, Arrestin) (
EF457996)
generated from NEIBank ESTs.
Sag shows that some exons are
absent, for example: EST (i) and (iii) are missing exons 6, 7, 8, 9,
and 10, EST (ii) and (iv) may terminate early at exons 8 and 5. Note:
arrows show introns in the direction of sequence reads.
