Figure 5 of Simpanya, Mol Vis 2008; 14:2413-2427.

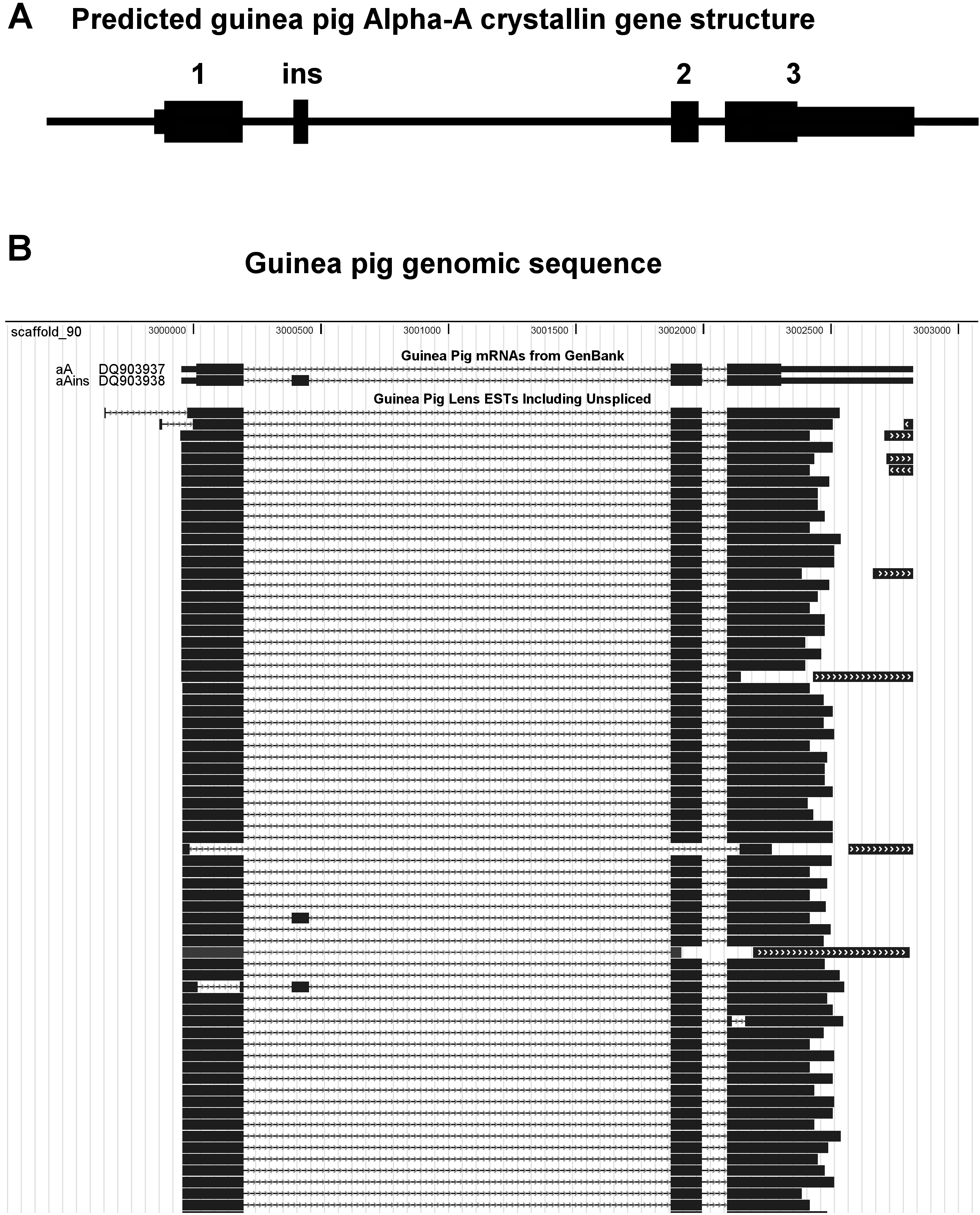

Figure 5. Alternate splicing of the guinea pig α-crystallin gene. A: Predicted guinea pig α-crystallin gene structure derived from EST data. B: Guinea pig lens α-crystallin ESTs including unspliced introns aligned to guinea pig genome (scaffold_90) and guinea pig mRNA from GenBank for Cryaa (DQ903937) and Cryaa-ins (DQ903938) viewed with EyeBrowse [48],[49]. Note guinea pig “scaffolds” are not yet annotated for gene structure (build 7–17–08). Note: arrows show introns in the direction of sequence reads.
