Figure 2 of Yao, Mol Vis 2008; 14:217-223.

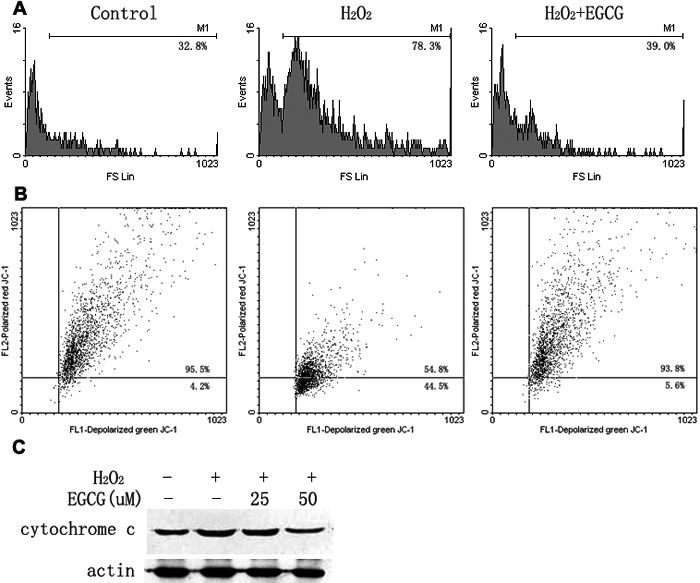

Figure 2. (-)-epigallocatechin gallate reduces the generation of ROS and prevents the loss of Δψm and the release of mitochondrial cytochrome c into the cytosol in HLEB-3 cells

A: The cells were pretreated with 50 μM EGCG for 1 h followed by treatment with 100 μM H2O2 for 2 h. The production of ROS was examined by measuring the level of ROS production using DCF-DA by flow cytometry. B: The cells were incubated with either 100 μM H2O2 for 6 h or pretreated 50 μM EGCG for 1 h in the presence of H2O2. The Δψm of cells was measured by staining with JC-1 by flow cytometry. C: After treatment for 24 h with 100 μM H2O2 or with 25 and 50 μM EGCG in the presence of H2O2, the cells were analyzed by western blot analysis. The result is one representative example of three separate experiments.

(168 K)

Yao, Mol Vis 2008; 14:217-223 <http://www.molvis.org/molvis/v14/a27/>
©2008 Molecular Vision <http://www.molvis.org/molvis/>
ISSN 1090-0535
