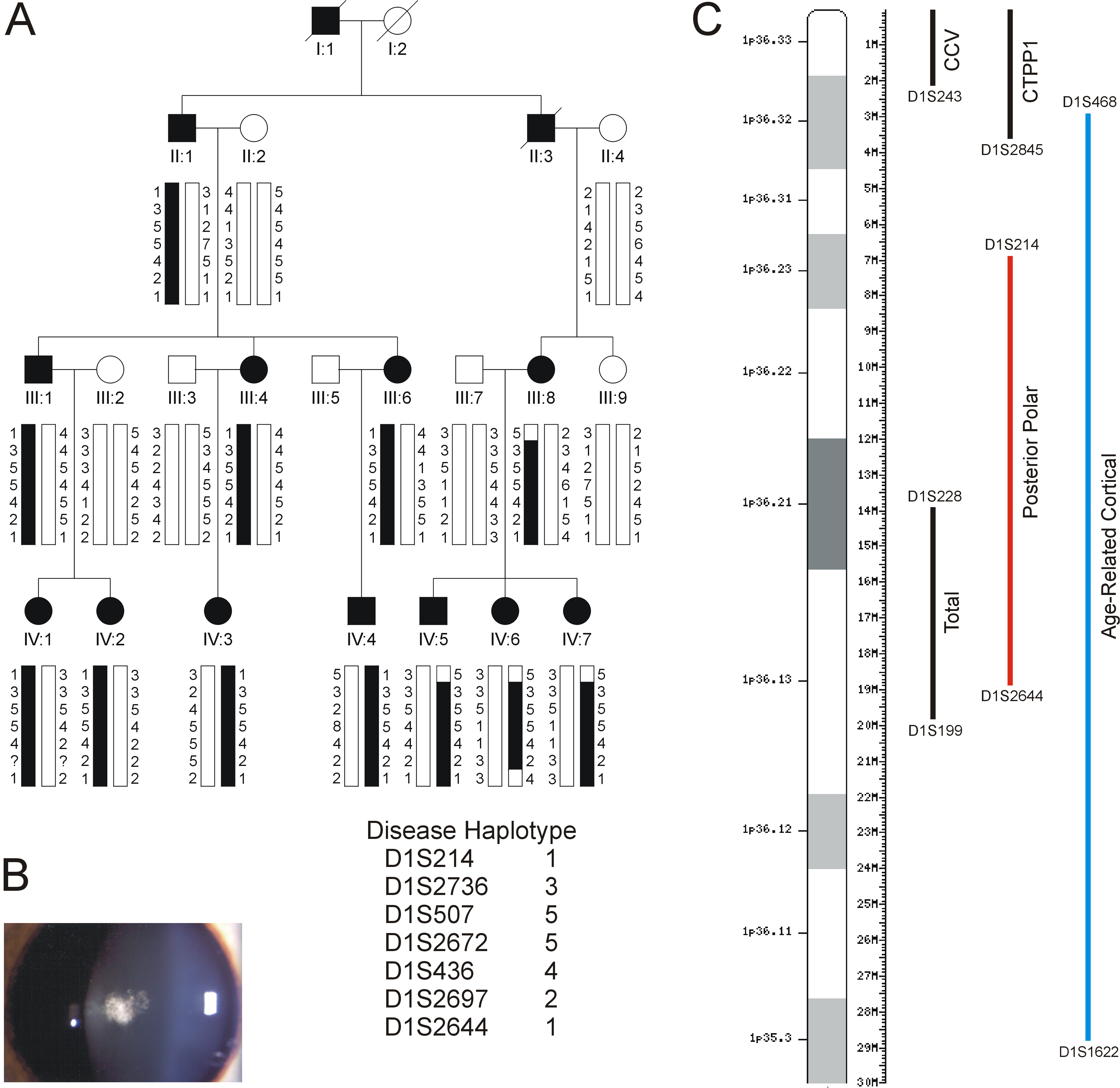

Figure 1. Autosomal dominant posterior
polar cataracts in a four generation white American pedigree (family
Mu).
A: Pedigree and haplotype analysis showing segregation of
seven STR markers on chromosome 1p listed in descending order from the
telomere. Squares and circles denote males and females, respectively.
Filled symbols and bars denote affected status and haplotypes,
respectively.
B: Slit-lamp image of left lens from affected
female IV:6 (age 12 years) showing posterior sub-capsular opacity.
C:
Ideogram of chromosome 1p36, comparing the cytogenetic and physical
locations of STR markers defining the posterior polar cataract locus in
this study (red) with those defining 3 other loci (black) for autosomal
dominant cataracts (CCV, CTPP1 and Total) [
45-
47],
and a locus (blue) for age-related cortical cataracts [
44]. M, mega-base
pairs.
