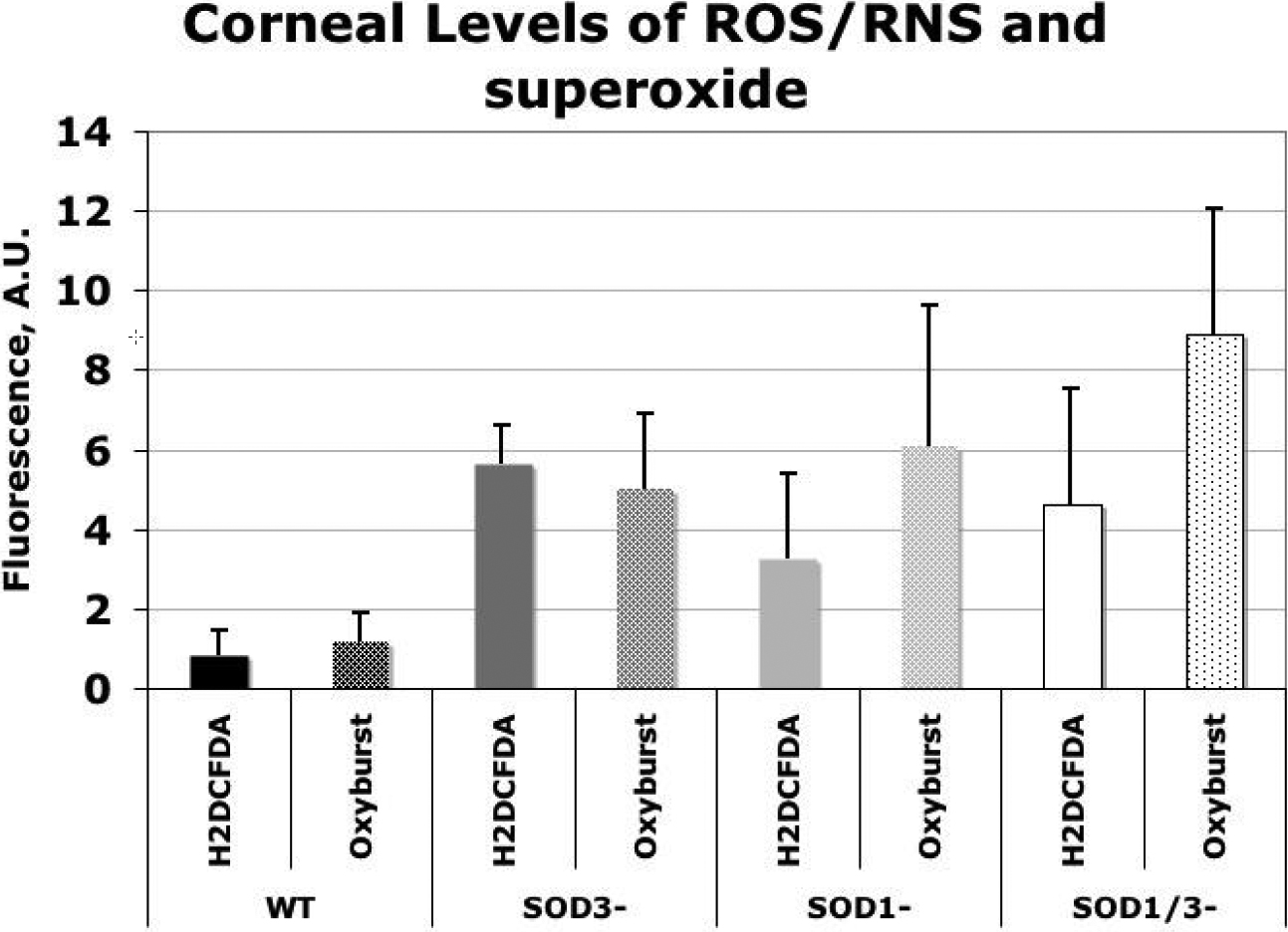

Figure 2. Levels of corneal ROS/RNS and
superoxide radicals in C57BL/6 wild type, SOD-3 null, SOD-1
null, and SOD-1/3 null mice expressed as arbitrary units. The
ROS/RNS levels were quantified using fluorimetry with 10 µM
2',7'-dichlorodihydrofluorescein diacetate (H2DCFDA), and
the superoxide levels were determined similarly with 10 µM OxyBURST
Green dye assay (excitation=488 nm, emission=520 nm). Both the ROS/RNS
and superoxide levels are significantly elevated in all three knockout
genotypes (p<0.05), except for the ROS/RNS levels in the SOD-1/3
null genotype (p=0.078). WT, wild type; A.U., arbitrary units.
