Figure 6 of Ma, Mol Vis 2008; 14:1906-1911.

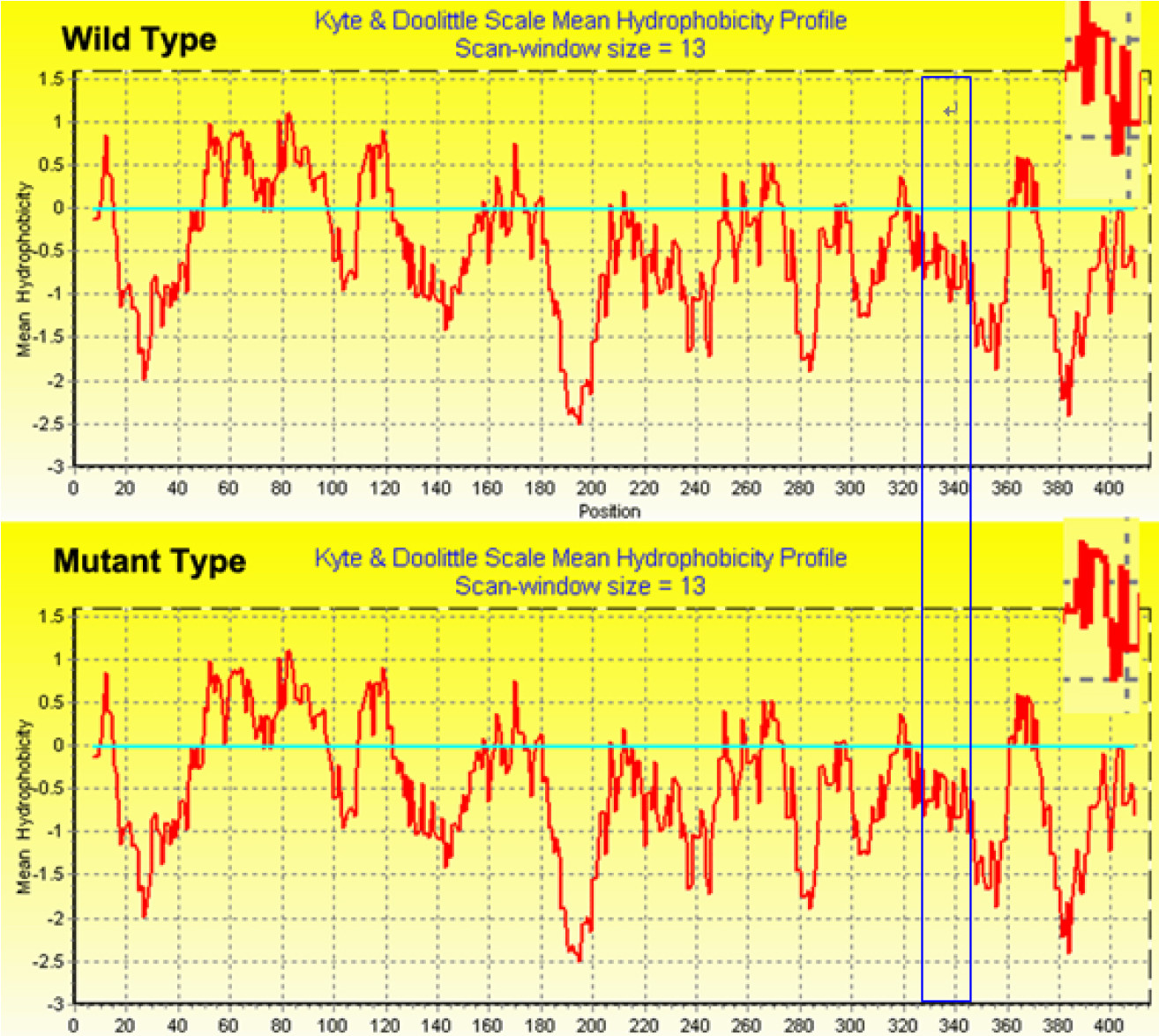

Figure 6. Comparison of hydrophobicity between wild type and mutant BFSP2. BioEdit software predicted the effect of the substitution on BFSP2 protein hydrophobicity. Hydrophobicity of the mutant protein increased between 330 amino acids and 340 amino acids.

Ma, Mol Vis 2008; 14:1906-1911. http://www.molvis.org/molvis/v14/a226

©2008 Molecular Vision http://www.molvis.org/molvis/

ISSN 1090-0535
