Figure 3 of Ma, Mol Vis 2008; 14:1906-1911.

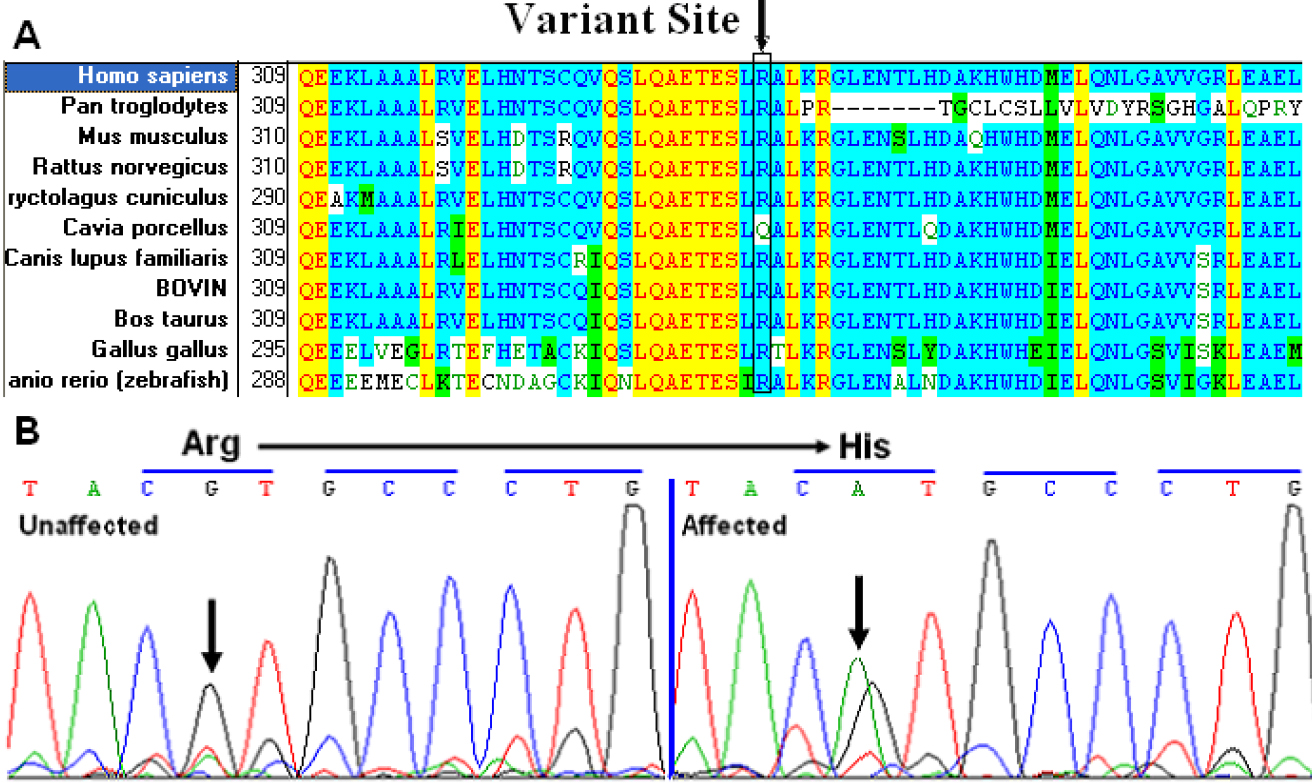

Figure 3. Multiple-sequence alignment and DNA sequence chromatograms of BFSP2. A: The multiple-sequence alignment of BFSP2 from primates, rodents, cattle, and zebrafish to humans (Homo sapiens) is shown. The Arg339 residue is located within a highly conserved region. B: DNA sequence chromatograms of the P.R339H mutation in BFSP2 are shown. The G→A transversion at position 1091 resulted in the P.R339H mutation.
