Figure 4 of Grey, Mol Vis 2008; 14:171-179.

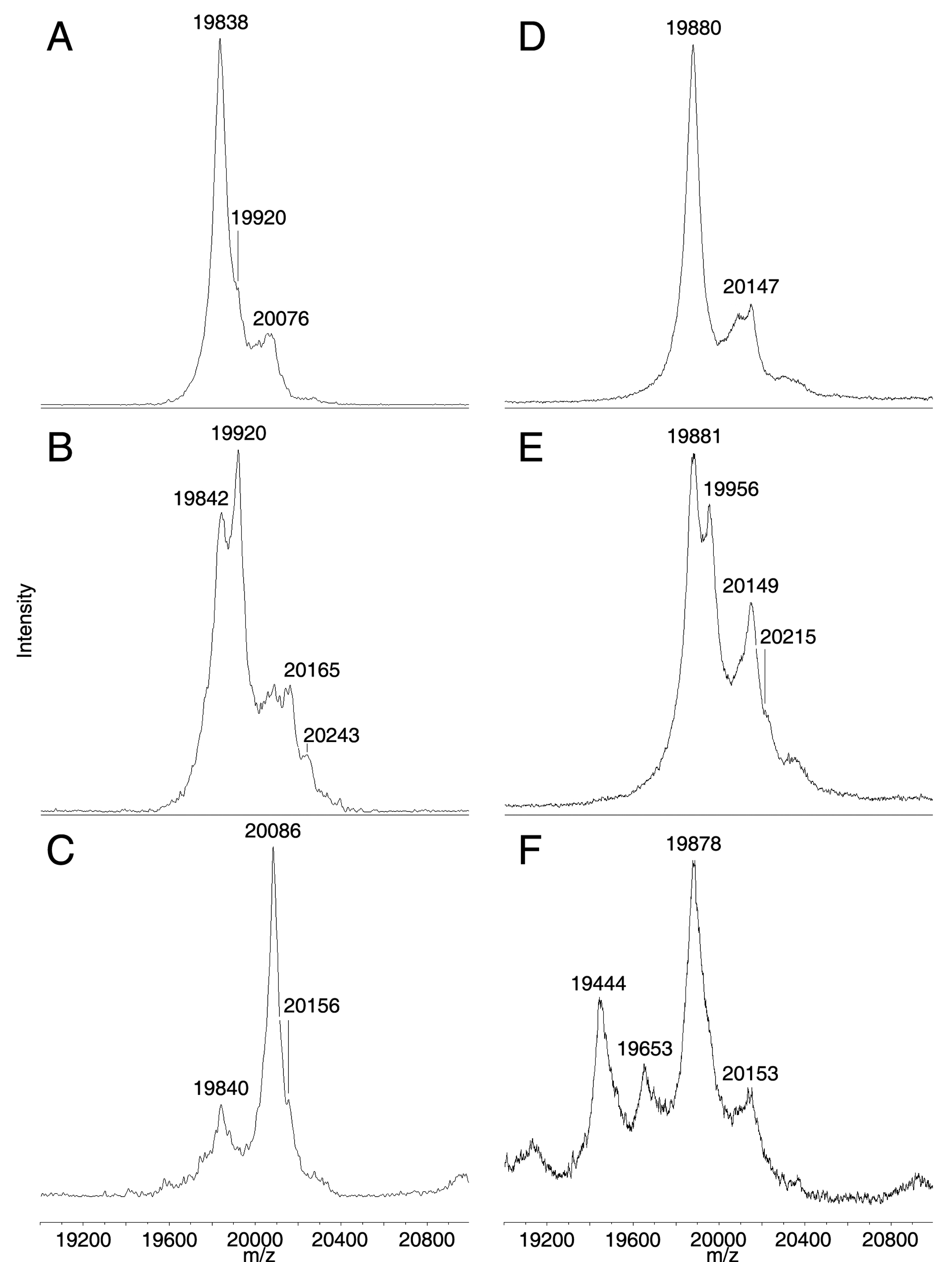

Figure 4. Relative abundance of phosphorylated α-crystallin in different regions of bovine and rabbit lenses. Extracted representative mass spectra of phosphorylation of intact αA- and αB-crystallin from outer cortex (A, D), middle cortex (B, E), and outer nucleus (C, F) of bovine (A-C) and rabbit (D-F) lenses are shown. Phosphorylation of both subunits of α-crystallin is most abundant in the middle cortex of bovine and rabbit lenses.
