Figure 3 of Song, Mol Vis 2008; 14:161-170.

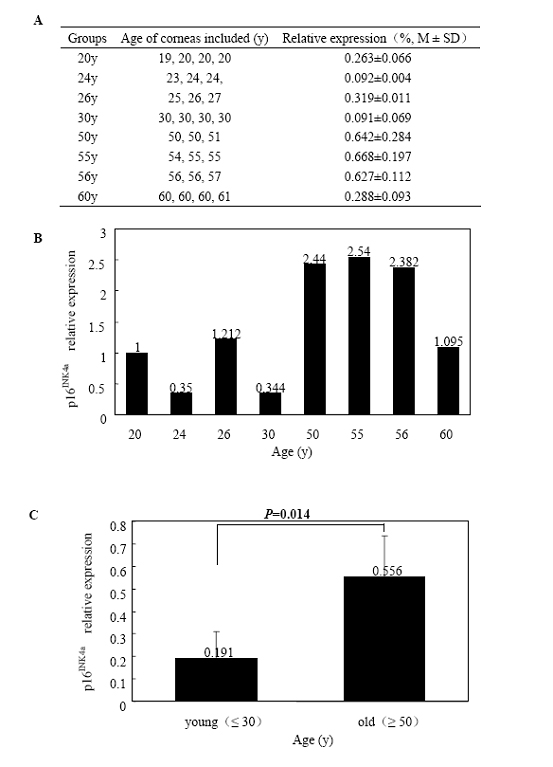

Figure 3. Quantitative real-time polymerase chain reaction analyses of p16INK4a mRNA expression in human corneal endothelial cells at various ages. Total RNA was isolated from HCECs of each group, and the first-strand cDNA were aynthesized from equal amounts of total RNA. Quantitative real-time PCR was performed to analyze p16INK4amRNA expression. A shows the expression of p16INK4a from the eight age groups normalized to GAPDH mRNA. B demonstrates fold change in p16INK4a expression relative to the calibrator of the 20-year-old group. C is the comparison of the average level of p16INK4amRNA expressed in HCECs between the young (≤ 30 years) and old (≥ 50 years) donors. Data are presented as mean±standard deviation, and a p<0.05 is considered to be statistically significant. Results indicate a significant increase (p=0.014) in p16INK4a mRNA expression in HCECs from the old donors.
