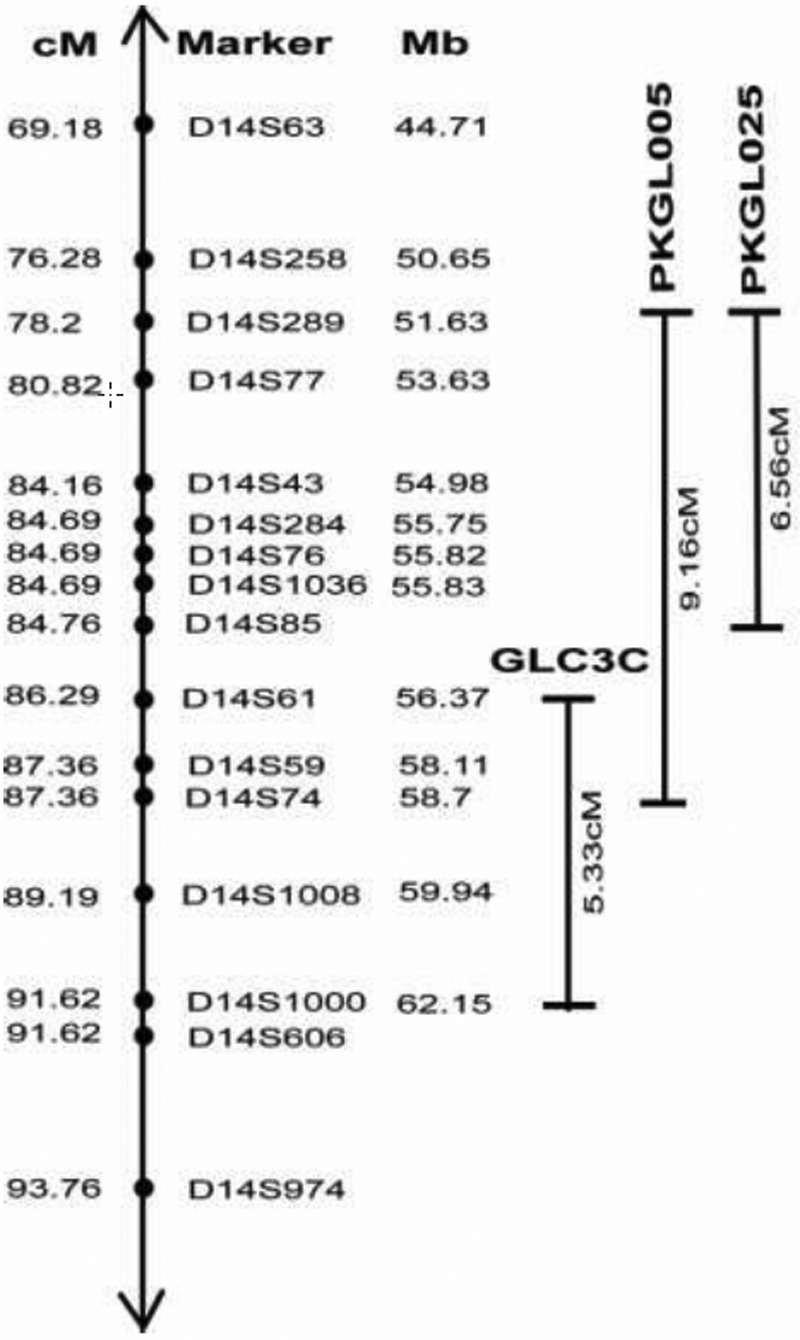

Figure 2. Schematic representation of
linkage on chromosome 14q24.2–24.3 in families PKGL005 and PKGL025.
Filled circles denote STR markers, and solid vertical lines represent
the chromosomal intervals in which markers are homozygous for affected
members of each of the two families.
