Figure 5 of Miyazaki, Mol Vis 2008; 14:1525-1532.

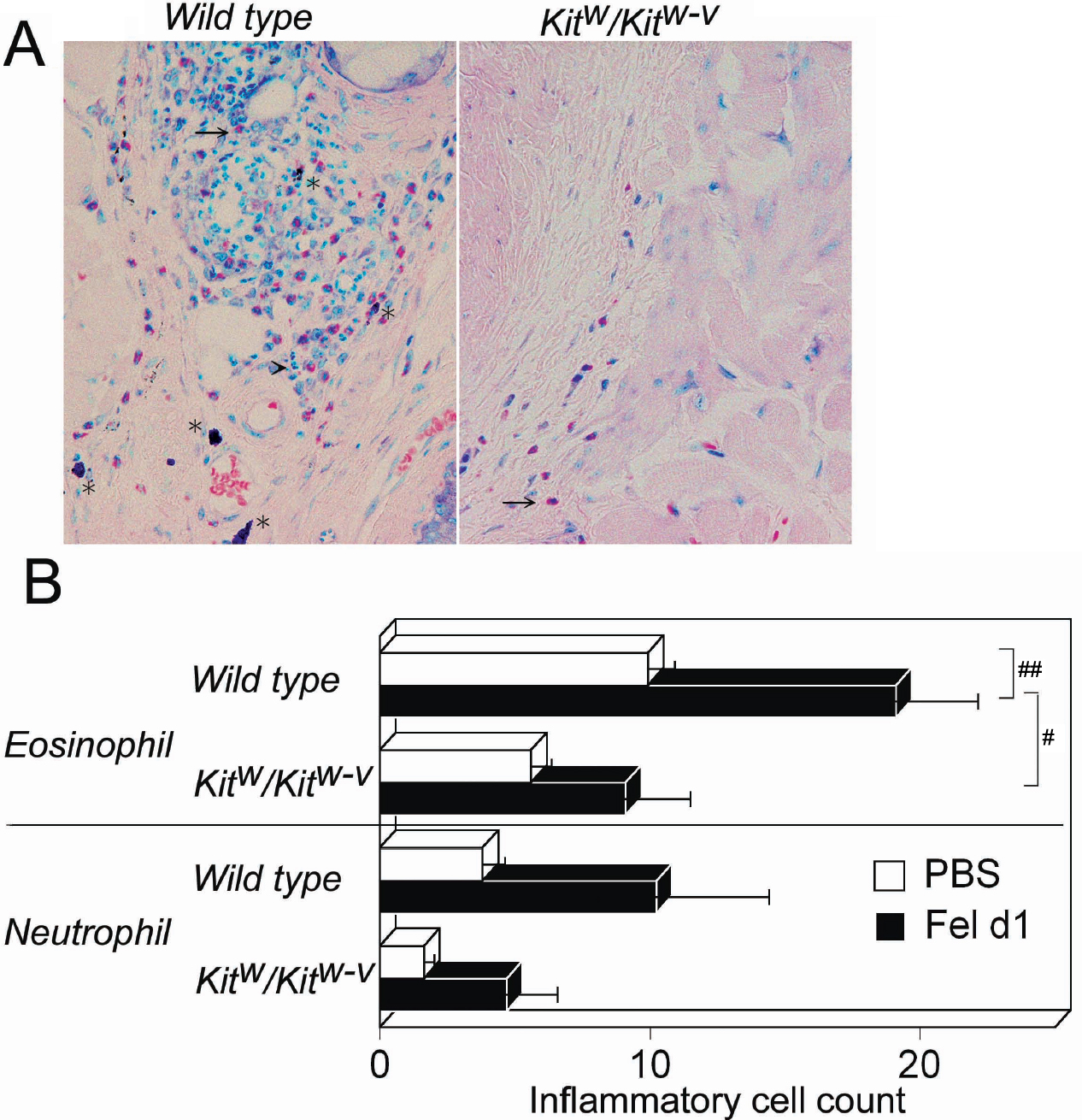

Figure 5. Impairment of late phase inflammatory responses in Kitw/Kitw-v mice. A: Kitw/Kitw-v mice were challenged with an allergen, and the conjunctiva were processed for Giemsa staining after 24 h. The asterisk in the image denotes mast cells, and an arrow denotes the presence of eosinophils. 400X magnification. B: Recruitment of eosinophils and neutrophils in the conjunctiva of Kitw/Kitw-v mice is show in the chart. The sharp (hash mark) denotes that p<0.005 and the double sharp denotes that p<0.05. Fel d1: sensitized with Fel d1; PBS: mock sensitized; n=10 mice/group.
