Figure 3 of Ergorul, Mol Vis 2008; 14:1517-1524.

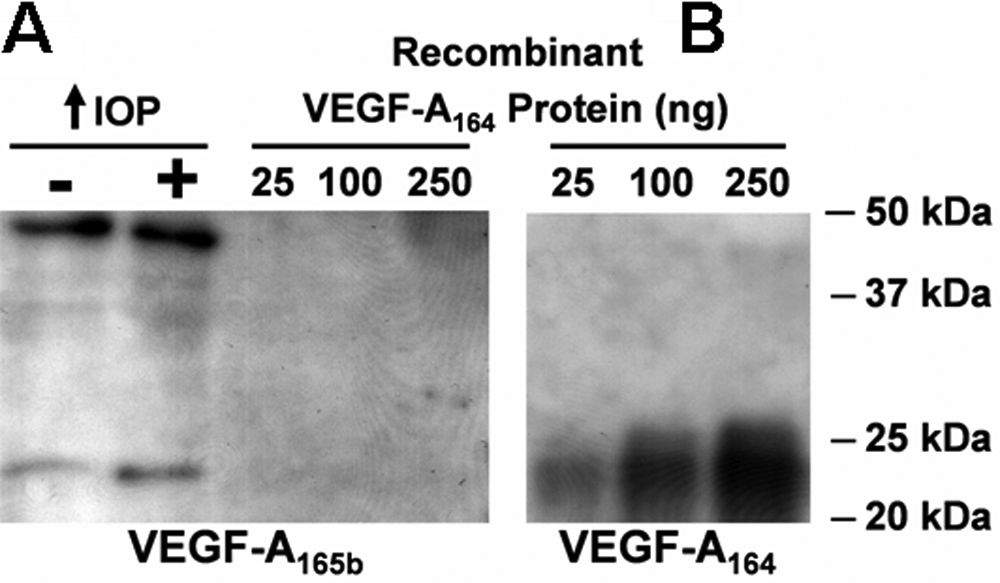

Figure 3. Anti-VEGF-A165b antibody does not recognize VEGF-A164.A: Incubation with VEGF-A165b antibody. This antibody recognizes the VEGF-A165b monomer (22.5 kDa) and dimer (45 kDa) in control and glaucomatous retinas (first two lanes). VEGF-A165b antibody does not recognize 25 ng, 100 ng, or 250 ng of VEGF-A164 recombinant protein in the same membrane (last three lanes). B: Incubation of the same membrane with the anti-VEGF antibody after stripping. The anti-VEGF antibody recognizes VEGF-A164 recombinant protein at all concentrations.
