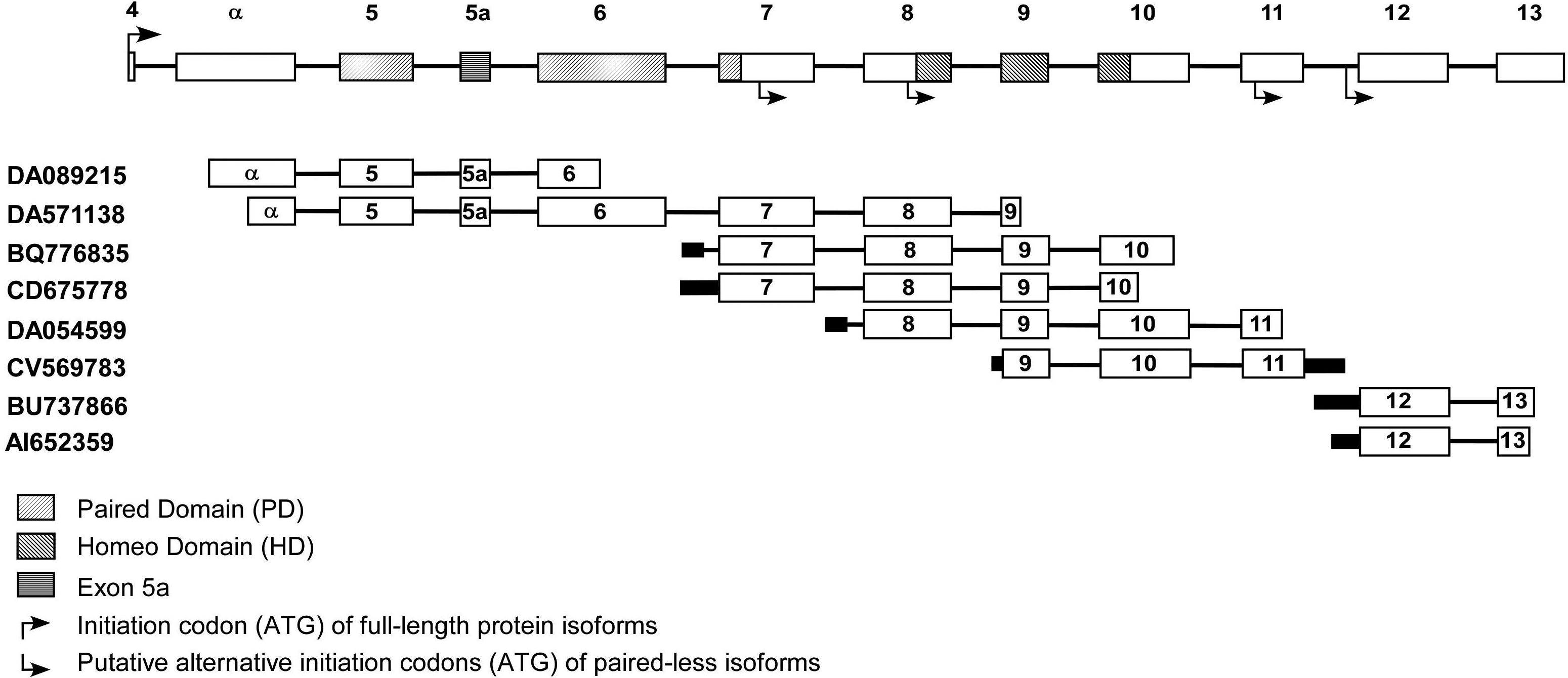

Figure 2. A schematic representation of
the human PAX6 and expressed sequence tags (ESTs) initiating
from intronic regions. The upper panel illustrates the structure of
the human PAX6. Only the genomic region containing the coding
exons is depicted with arrows indicating the location of the initiation
codons. The regions covered by each of the eight spliced ESTs
containing intronic sequences are depicted below. Spliced out regions
are illustrated as a thin line.
