Figure 6 of Shelton, Mol Vis 2008; 14:1465-1479.

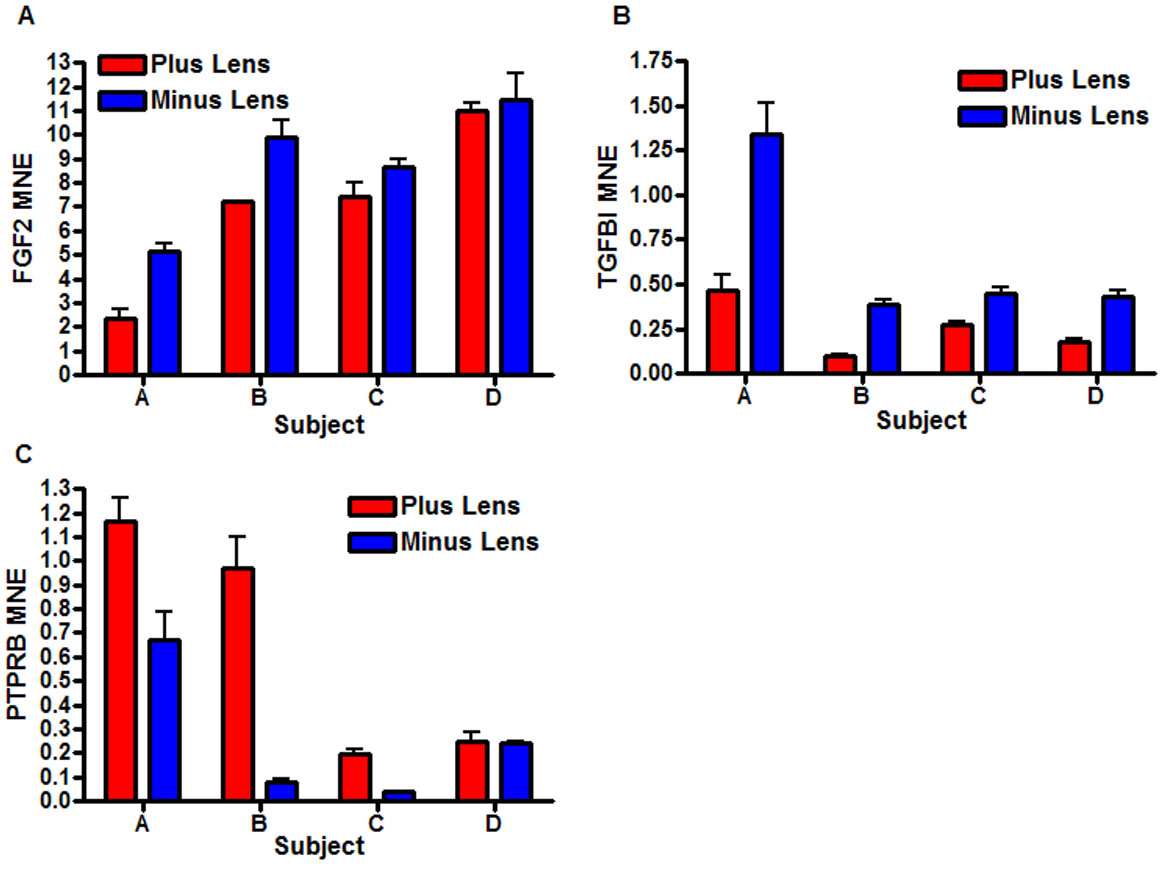

Figure 6. Real time polymerase chain reaction quantification of differentially expressed genes in the marmoset choroid/RPE. The expression of fibroblast growth factor-2 (A), transforming growth factor beta induced (B), and protein tyrosine phosphatase, receptor type, B (C) mRNA was measured using human gene-specific primers (Appendix 1). Graphs represent the mean normalized expression of each gene of interest in individual marmoset choroid/RPE samples following minus or plus lens-treatment. All reactions were run in triplicate and normalized to the reference gene, cyclophilin A.
