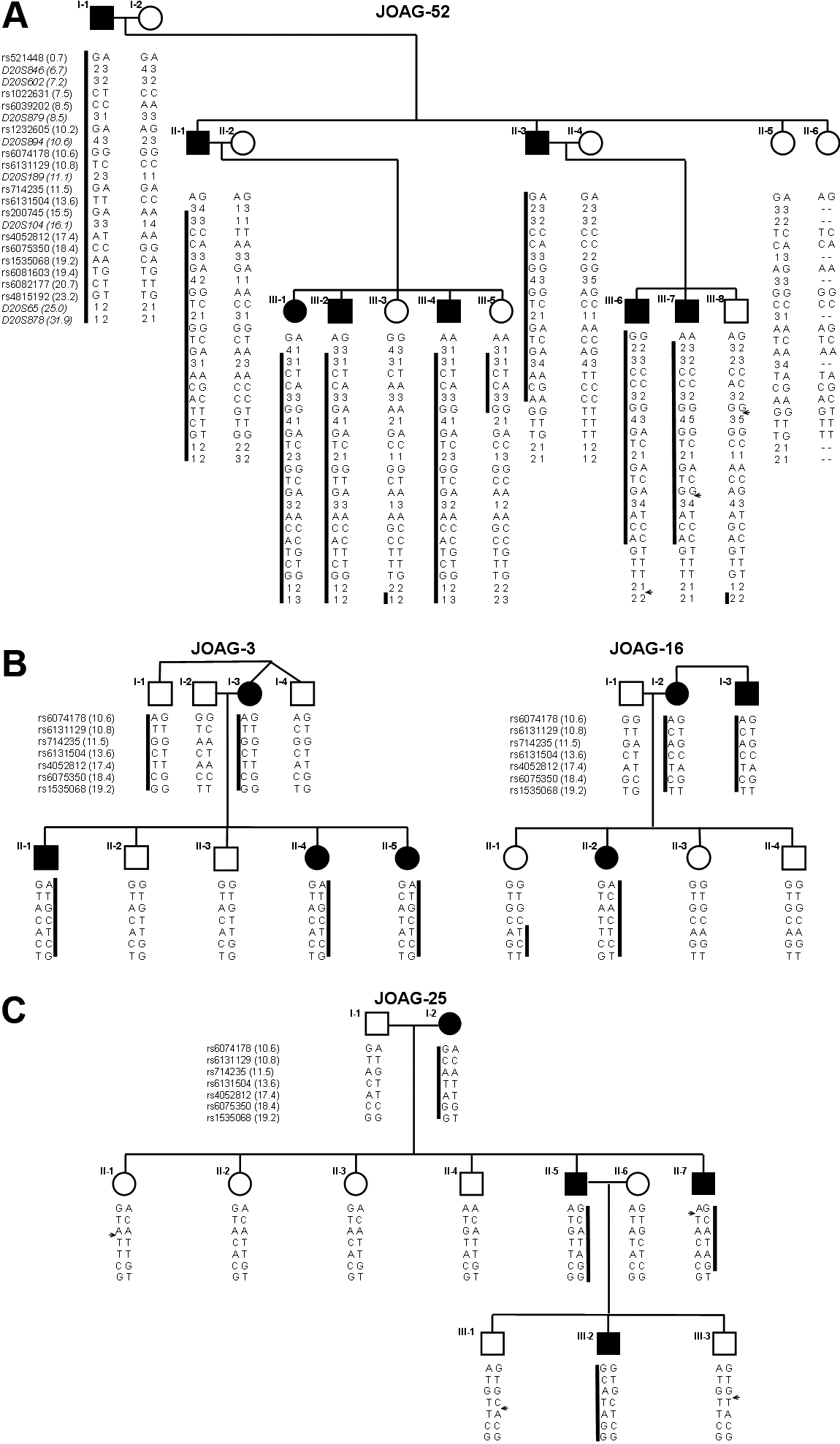

Figure 1. GLC1K haplotype analysis
in JOAG families. Haplotypes consisting of alleles for microsatellite
repeat markers and SNPs are shown under each individual in the
pedigrees. The boxed regions indicate the haplotype that segregates
with the affected status. The small arrow identifies the location of a
recombination event on the non-disease chromosome. The
UCSC genome browser [
27] was used to
determine the location of the markers.
