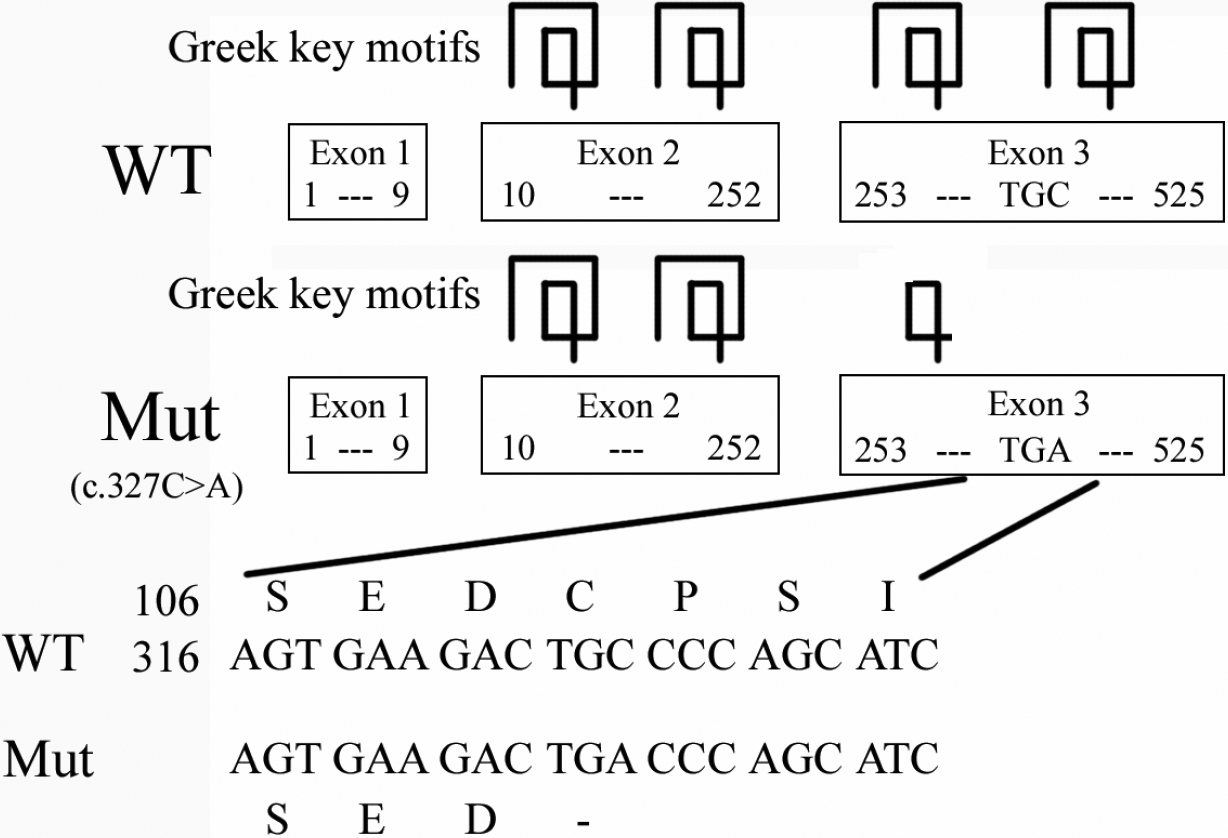

Figure 4 of Yao, Mol Vis 2008; 14:1272-1276.


Figure 4. Influence of the mutation (c.327C>A) on γC-crystallin translation. The C>A substitution at c.327 in exon 3 leads to a premature stop codon at codon 109. A truncated protein (108 amino acids) is putatively generated in addition to a wild type γC-crystallin (174 amino acids).
