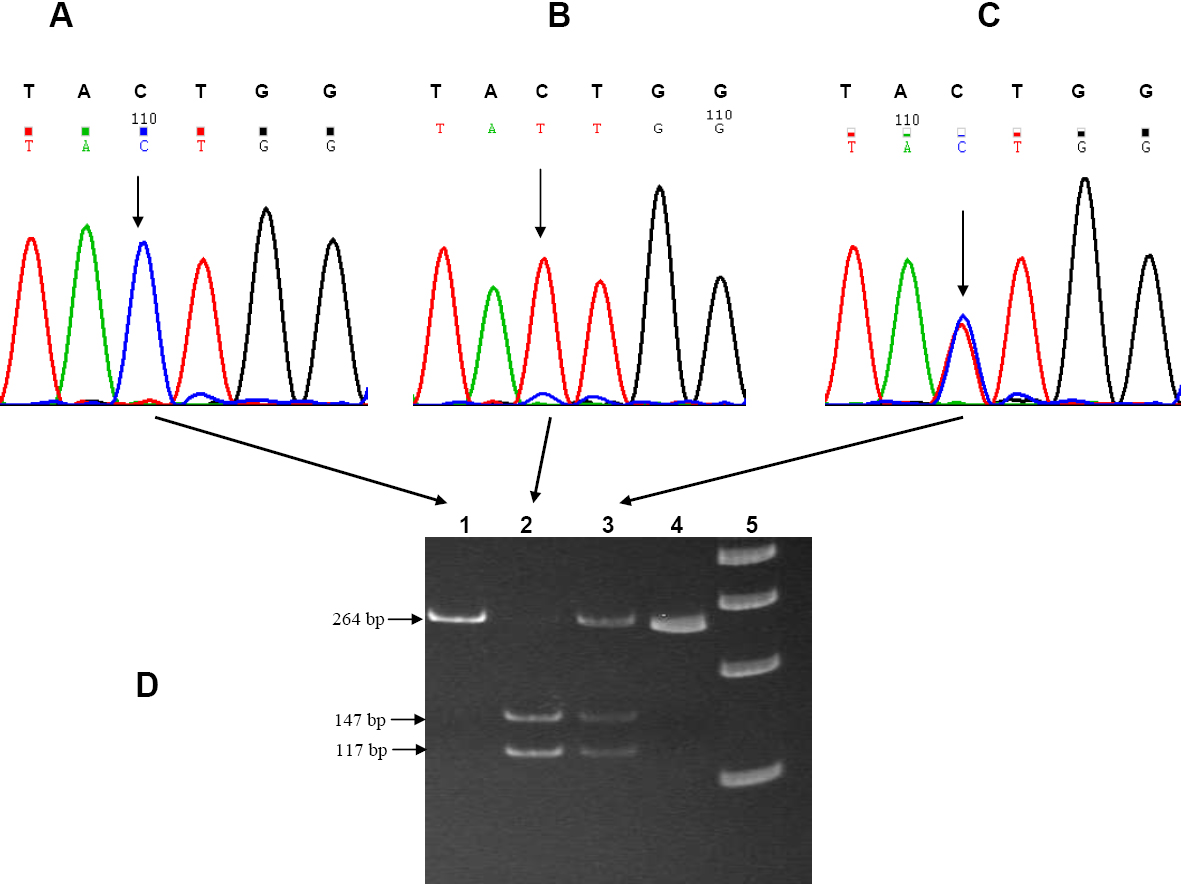

Figure 3. Genotype pattern of the intronic
LOXL1 SNP
rs2165241.
Representative electropherograms show the three genotype patterns for
the
rs2165241
(C>T) SNP in
A (CC; wild type),
B (TT; homozygous),
and
C (CT; heterozygous). The arrow heads indicate the point of
substitution. The normal sequence is provided in the upper panel above
each electropherogram.
D demonstrates the confirmation of these
variants by PCR-based restriction digestion in a non-denaturing
polyacrylamide gel. The PCR amplicon (264 bp) for
LOXL1
(obtained using the primer pairs 5′-TAG GGC CCC TTG GAG AAT AG-3′ and
5′-GTC CCA TTC CCC TCT CAA TC-3′) after digestion with SspI generated
an intact fragment of 264 bp in the wild type (lane 1). Presence of the
variation generated a restriction site for this enzyme and cleaved into
fragments of 147 bp and 117 bp in the individual homozygous for this
change (lane 2). The individual heterozygous for this change (lane 3)
exhibited all three fragments (264 bp, 147 bp, and 117 bp). Lane 4
contains an undigested amplicon, and Lane 5 contains the 100 bp DNA
ladder (Gene Ruler
TM; MBI Fermentas, Vilnius, Lithuania).
