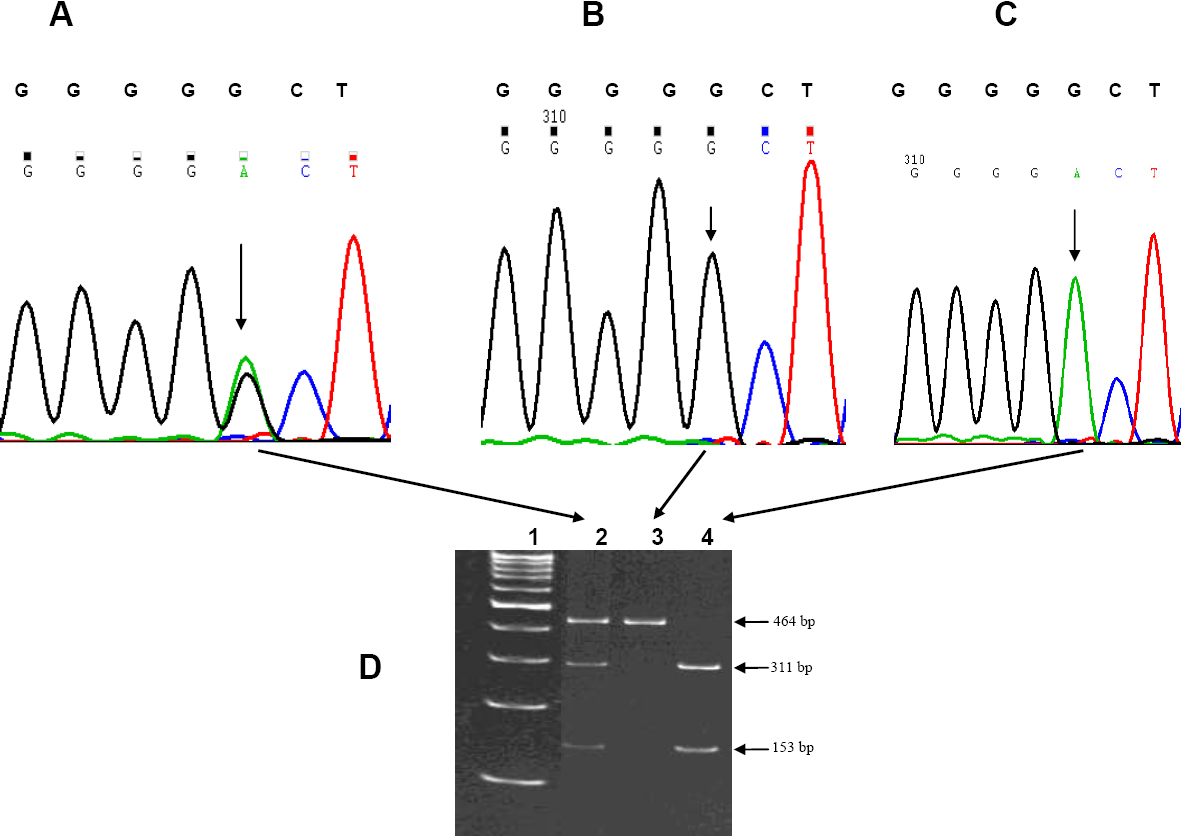

Figure 2. Genotype pattern of the
LOXL1
SNP
rs3825942
(G153D). Representative electropherograms show the three genotype
patterns for the
rs3825942
(G>A) SNP in
A (GA; heterozygous),
B (GG; wild
type), and
C (AA; homozygous). The arrow heads indicate the
point of substitution. The normal sequence is provided in the upper
panel above each electropherogram.
D demonstrates the
confirmation of these variants by PCR-based restriction digestion in a
non-denaturing polyacrylamide gel. The PCR amplicon (464 bp) for
LOXL1
(obtained using the primer pairs 5′-GCA GGT GTA CAG CTT GCT CA-3′ and
5′-ACA CGA AAC CCT GGT CGT AG-3′) after digestion with HinfI generated
an intact fragment of 464 bp in the wild type (lane 3). Presence of the
variation generated a restriction site for this enzyme and cleaved into
fragments of 311 bp and 153 bp in the individual homozygous for this
change (lane 4). The individual heterozygous for this change (lane 2)
exhibited all three fragments (464 bp, 311 bp, and 153 bp). Lane 1
contains the 100 bp DNA ladder (Gene Ruler
TM; MBI Fermentas,
Vilnius, Lithuania).
