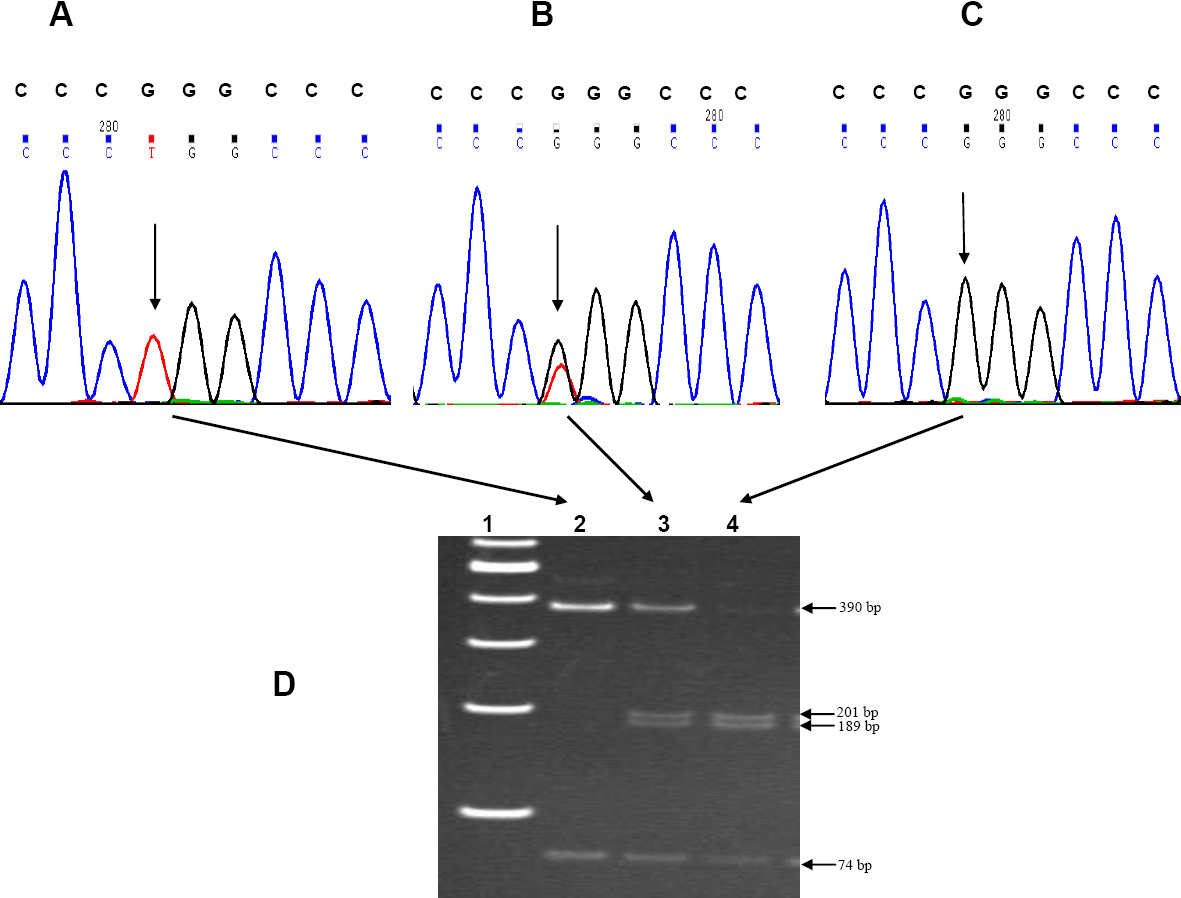

Figure 1. Genotype pattern of the
LOXL1
SNP
rs1048661
(R141L). The representative electropherograms show the three genotype
patterns for the
rs1048661
(G>T) SNP in
A (TT; homozygous),
B (GT;
heterozygous), and
C (GG; wild type). The arrow heads indicate
the point of substitution. The normal sequence is provided in the upper
panel above each electropherogram.
D demonstrates the
confirmation of these variants by PCR-based restriction digestion in a
non-denaturing polyacrylamide gel. The PCR amplicon (464 bp) for
LOXL1
(obtained using the primer pairs 5′-GCA GGT GTA CAG CTT GCT CA-3′ and
5′-ACA CGA AAC CCT GGT CGT AG-3′) after digestion with SmaI cleaved
into fragments of 201 bp, 189 bp, and 74 bp in the wild type (lane 4).
Presence of the variant abolished the site for this restriction enzyme,
generating an intact fragment of 390 bp and 74 bp in the individual
homozygous for this variant (lane 2). The individual with the
heterozygous variant (lane 3) exhibits all the fragments (390 bp, 210
bp, 189 bp, and 74 bp). Lane 1 contains the 100 bp DNA ladder (Gene
Ruler
TM; MBI Fermentas, Vilnius, Lithuania).
