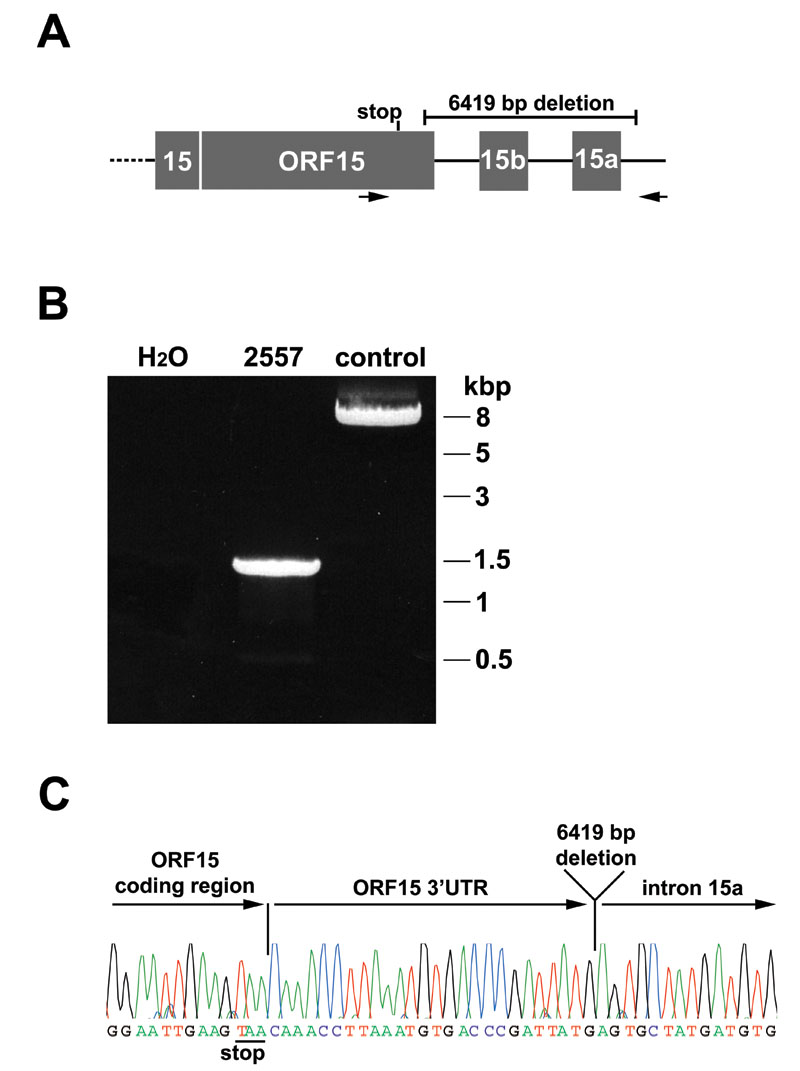

Figure 2. Characterization of the deletion
breakpoint in patient 2557. A: Schematic drawing of RPGR
exons ORF15, 15a, and 15b. Primers used for long-range PCR are marked
by arrows and flank the 6419 bp deletion. B: Long-range PCR for
patient 2557 (male) and a control sample (male). The difference of the
PCR products represents the 6.4 kb deletion in patient 2557. C:
The sequence profile shows the breakpoint of the deletion in patient
2557. The open reading frame of exon ORF15 was not affected by the
deletion. In total, 6419 bp were deleted, starting 27 bp after the stop
codon in ORF15 and ending 72 bp after exon 15a. Note that exon 15a is
downstream of 15b. Thus, the deletion affected both exons 15a and 15b
of RPGR.
