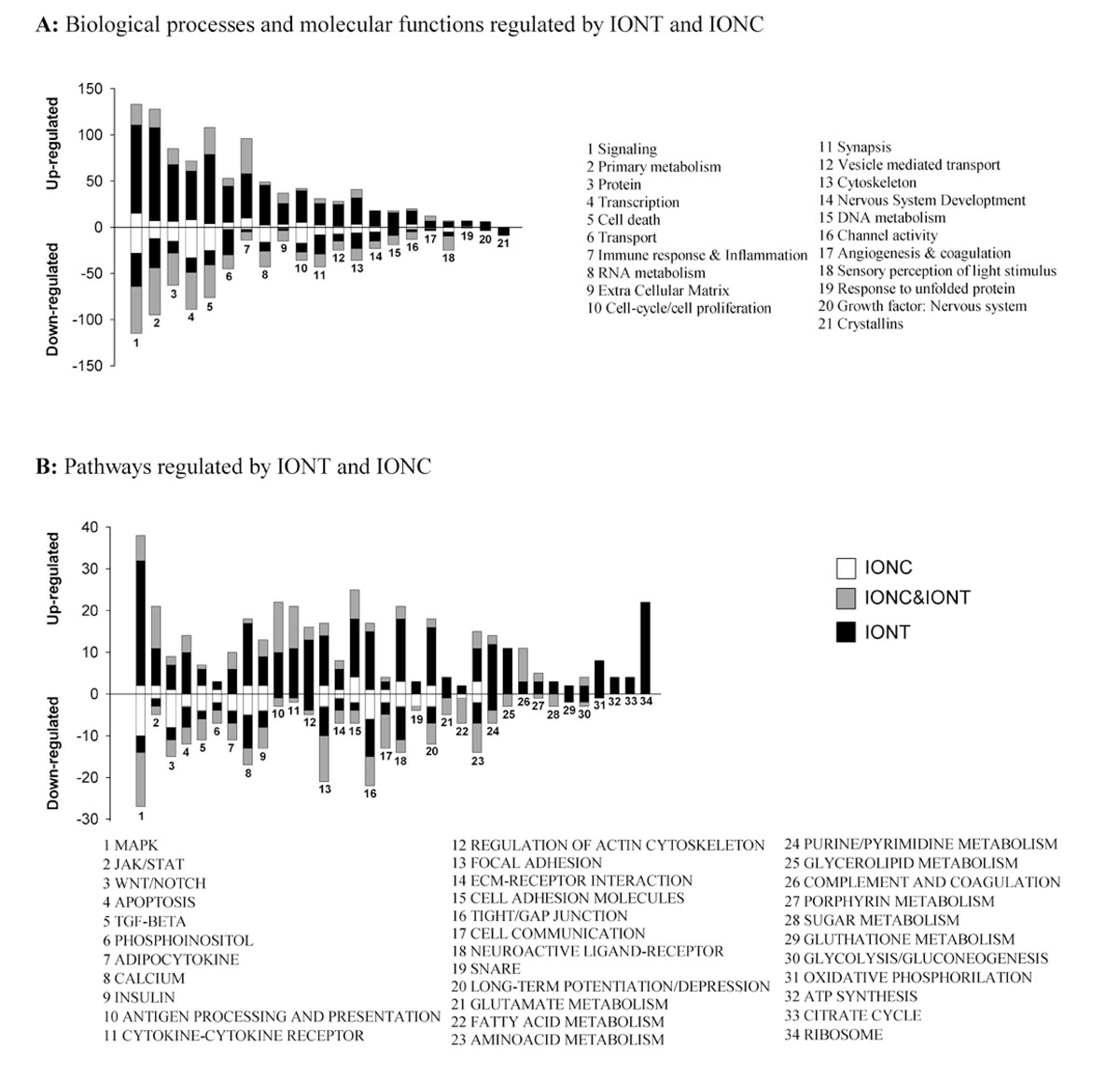

Figure 2. Functional clustering of genes
regulated after optic nerve injury in the adult rat retina. A:
Graph showing which biologic processes and molecular functions are
regulated by intraorbital nerve transection (IONT) and intraorbital
nerve crush (IONC) in the adult rat retina and the number of up and
down-regulated genes in each one. B: Graph showing which
pathways are regulated by IONT and IONC in the adult rat retina and the
number of up- and down-regulated genes in each one. From 1 to 9:
pathways related to cell signaling; from 10 to 11 pathways related to
inflammation and immune system; from 12 to 16 pathways related to
cytoskeleton; from 17 to 21 pathways related to synapse and from 22 to
25, and 27 to 32 pathways related to basic metabolism. Clusters with a
pEASE value <1.00E-04 were considered significant. Black bars
represent the number of genes of a given cluster specifically regulated
by IONT, white bars specifically regulated by IONC and gray bars
commonly regulated by both lesions. The number of upregulated genes in
each cluster is shown in the positive y-axis and number of
downregulated ones in the negative y-axis Abbreviations: IONT:
intraorbital nerve transection. IONC: intraorbital nerve crush.
