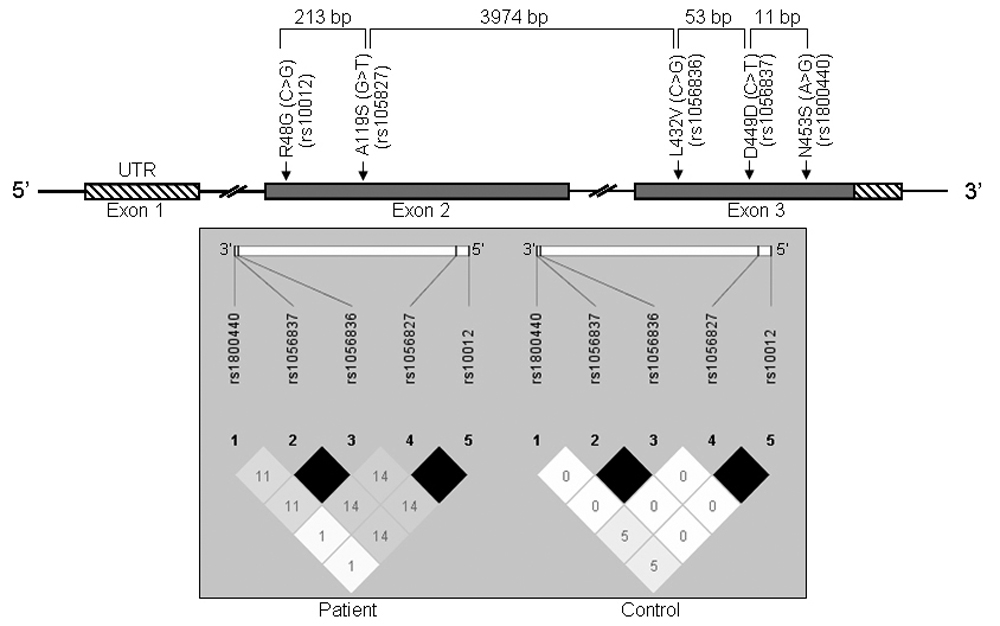

Figure 2. Linkage disequilibrium (LD)
pattern (r
2) of the five coding single nucleotide
polymorphisms in
CYP1B1 in primary open-angle glaucoma patients
and controls. The extent of LD lowers as the shading gets lighter
(calculated with
Haploview
3.2 using standard color schemes). It is to be noted that the
direction (5′ to 3′) of the cSNPs in the top panel (cartoon of the
gene) and the bottom panel (LD pattern) is reversed.
