Figure 1 of
Li, Mol Vis 2007;
13:804-812.

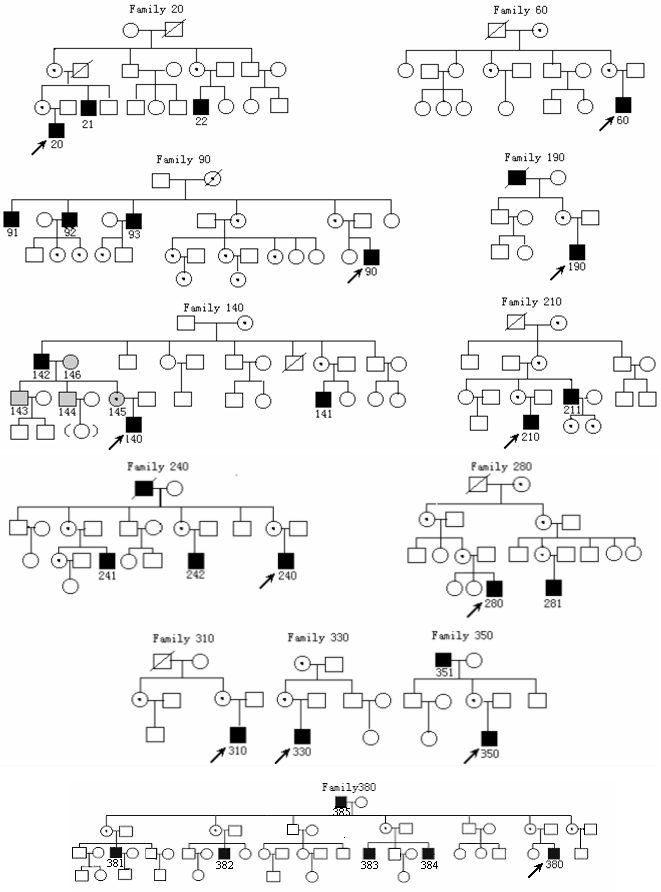

Figure 1. Pedigrees of families with X linked juvenile retinoschisis and identified mutations in the RS1 gene
Dark-shaded boxes represent family members with X-linked juvenile retinoschisis, while light-shaded boxes and circles mark those with nondisease-related polymorphisms. Circles with a dot denote obligate carriers. Arrows point to probands. Slashed circles or boxes are deceased family members.
