Figure 10 of
Hartung, Mol Vis 2007;
13:66-78.

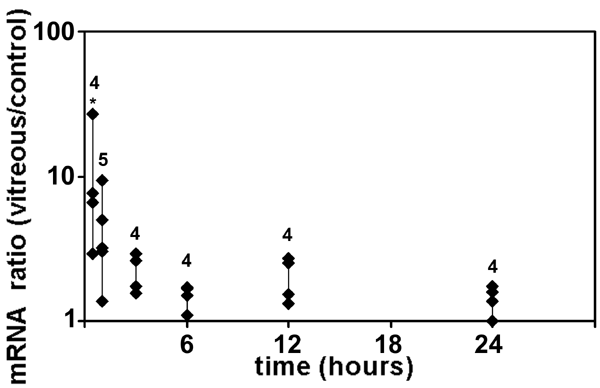

Figure 10. Vitreous increases c-fos mRNA levels in retinal pigment epithelial cells
Retinal pigment epithelial (RPE) cells were treated for various times with control medium or vitreous-containing medium, and the levels of mRNA for c-fos were measured using qPCR. Each point at a particular treatment time indicates a different RPE/vitreous donor pair, and the number of donor/vitreous pairs is shown. At 30 min, REST-XL analysis showed that c-fos mRNA was significantly increased (*p<0.004) in vitreous-treated RPE cells.
