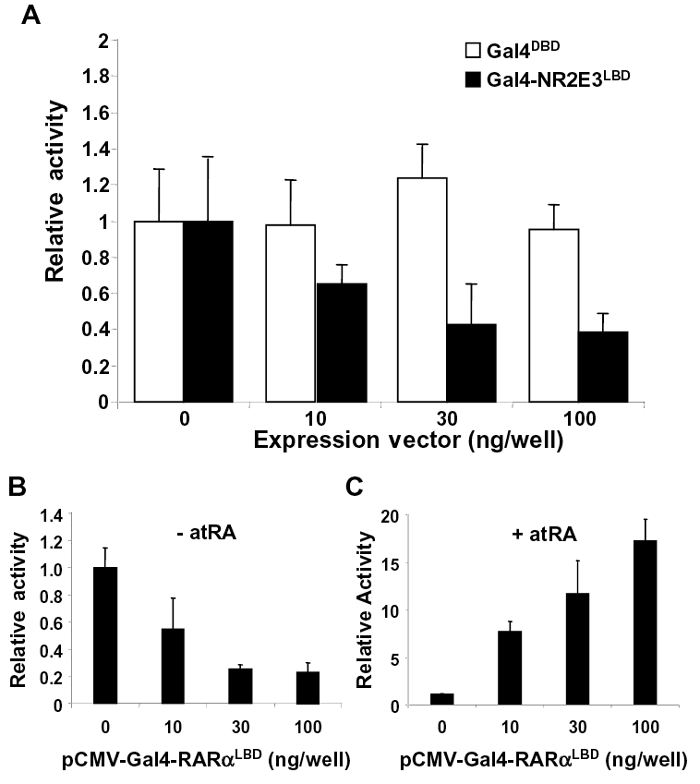

Figure 1. Transcriptional repression by NR2E3LBD
COS-1 cells were transiently transfected with Gal4DBD or Gal4-NR2E3LBD expression plasmids. Transcriptional activity was measured for the different luciferase Gal4-reporter genes. A: Luciferase activity in the presence of an increasing amont of GAL-NR2E3LBD. B: Luciferase acitity in the presence of an increasing amount of GAL-RARαLBD. C: Luciferase activity in the presence of an increasing amount of GAL-RARαLBD in the presence of its ligand RA. Normalized values are expressed as relative luciferase activity.
