Figure 5 of
Zhang, Mol Vis 2007;
13:330-336.

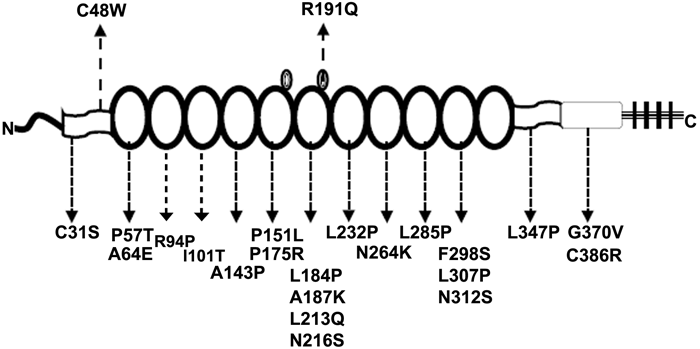

Figure 5. Diagram of nyctalopin with missense mutations identified so far (Other mutations causing null alleles were not listed here)
Nyctalopin has an NH2-terminal signal sequence, NH2-terminal cysteine cluster, 11 central LRRs (circles), a COOH-terminal cluster, a region before GPI, and a GPI-anchor site. Two small circles are put on LRR5 and LRR6, indicating the two small loops inside the nyctalopia as suggested [18]. The two mutations described here are shown on the top of the protein diagram and those mutations previously reported on the bottom.
