Figure 1 of Roger, Mol Vis 2007; 13:206-219.

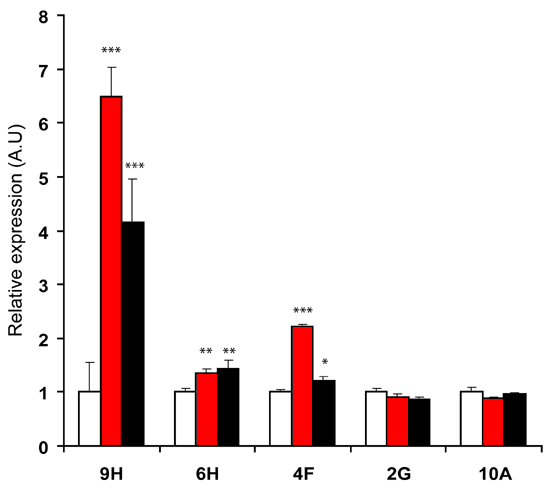

Figure 1. Relative level of UC6 cDNAs expression in retinal explants after six days of cytokine treatment

Retinal explants from P0 rat were cultured for six days in vitro (DIV) with medium alone (white bars) or with 10 ng/ml of either ciliary neurotrophic factor (red bars) or leukemia inhibitory factor (black bars). Retinal explants were harvested after 6DIV and RNA were extracted. cDNA expression corresponding to each clone was analyzed by real-time RT-PCR experiments. Histogram illustrates the mRNA expression corresponding to 9H, 6H, 4F, 2G, and 10A clones normalized by S26. For each gene, all values were compared to mRNA expression of untreated rat retinal explants at 6DIV. Data are expressed as mean±SD from two independent experiments performed in triplicate. (***p<0.001; **p<0.01; *p<0.05).

(14 K)

Roger, Mol Vis 2007; 13:206-219 <http://www.molvis.org/molvis/v13/a24/>
