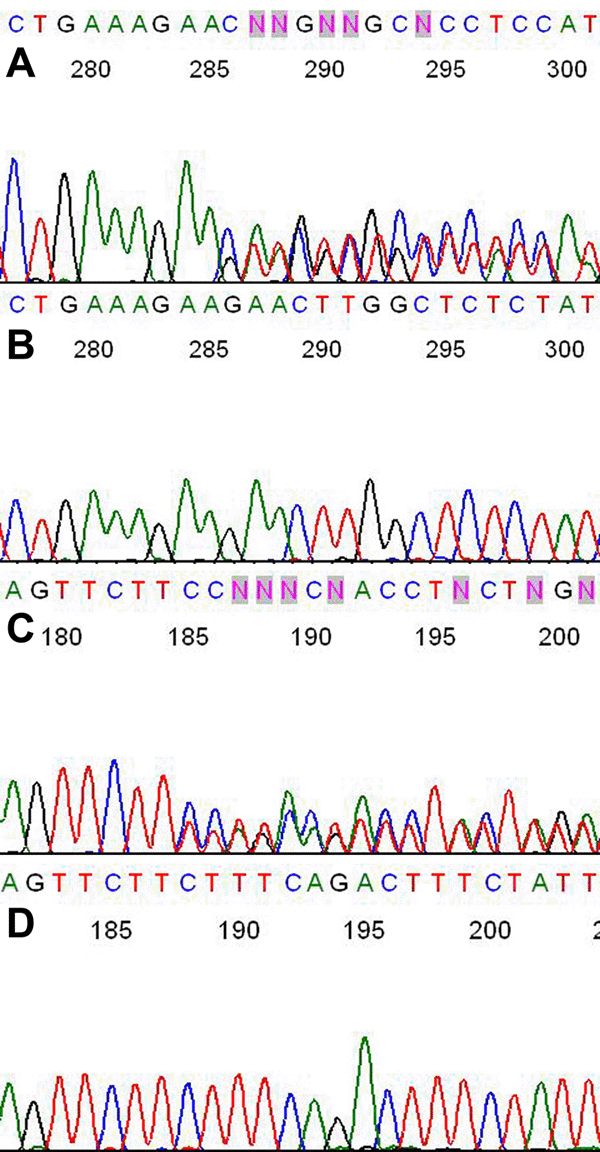

Figure 5. Sequencing analysis reveals the deletion mutation in BFSP2
A and C show forward and reverse sequencing results of a three-nucleotide deletion mutation (E233del mutation) at exon 3 of BFSP2. B and D show forward and reverse sequencing results of normal exon 3 of BFSP2.
