Figure 4 of
Cui, Mol Vis 2007;
13:2023-2029.

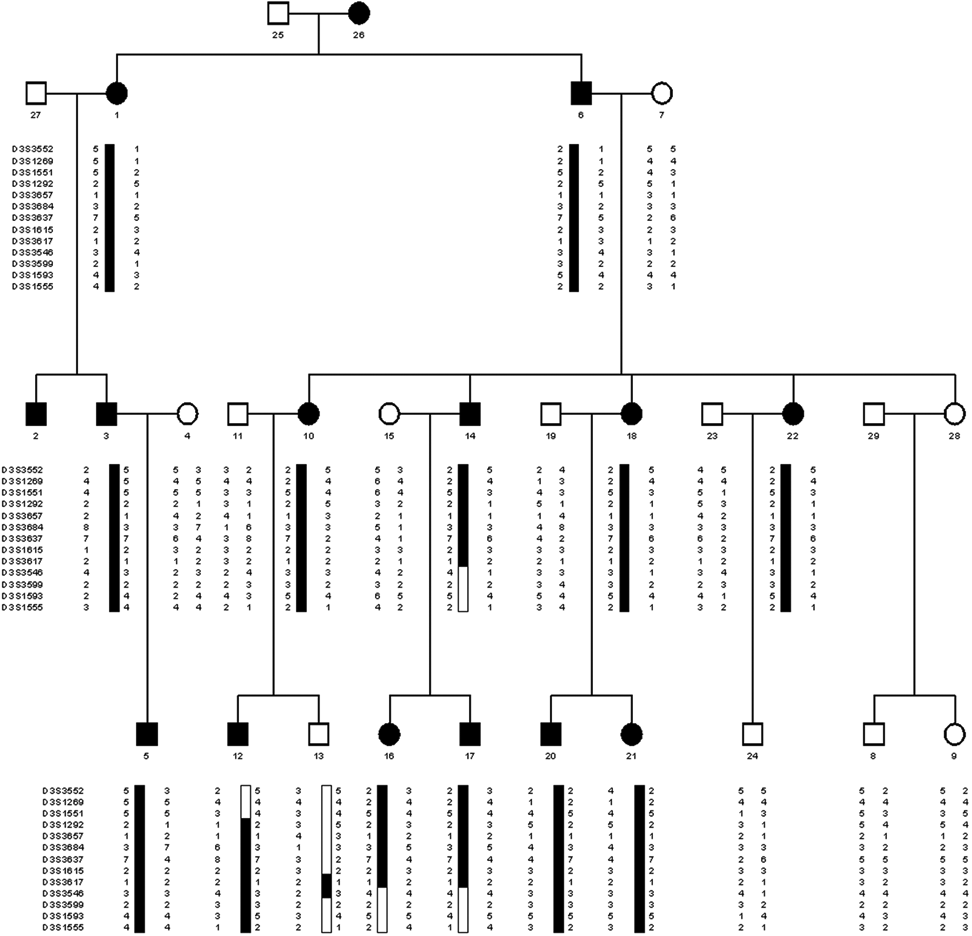

Figure 4. Haplotype analysis of the family
Markers are listed on the left from top to bottom: telomere-D3S3552-D3S1269-D3S1551-D3S1292-D3S3657-D3S3684-D3S3637-D3S1615-D3S3617-D3S3546-D3S3599-D3S1593-D3S1555-centromere. The dark boxes symbolize the haplotype cosegregating with the disease phenotype. The question mark means that the genotype is undetermined. Family members who did not provide blood samples were not included in this figure.
