Figure 1 of
Dekomien, Mol Vis 2007;
13:174-180.

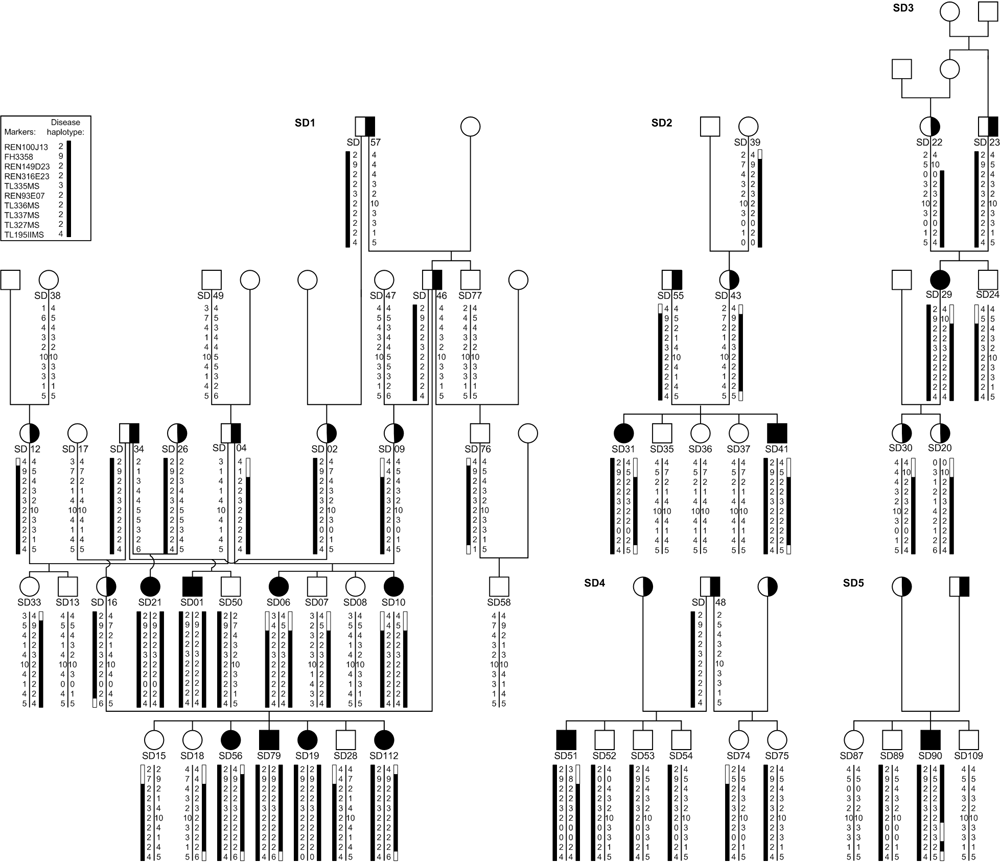

Figure 1. Haplotypes of the gPRA Schapendoes families SD1-5 as established by microsatellite markers for chromosome 20
Affected dogs are represented by black, unaffected by white and those with known carrier status are represented by half-filled symbols. Circles represent females and squares represent males. Genotype that could not be ascertained are scored as "0". Black bars indicate the affected haplotype. In the box, genotyped markers and the disease haplotype are indicated. The observed recombination events evidence the disease causing locus in the region between markers FH3358 and TL195IIMS.
