Figure 3 of Zhang, Mol Vis 2007; 13:1674-1679.

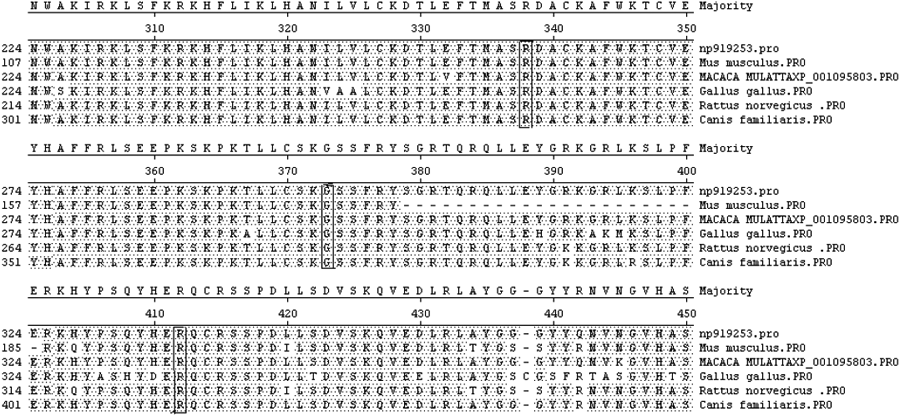

Figure 3. Multiple sequence alignment of FRMD7 proteins and several eukaryotic homologs

For partial analysis the NH2-terminal and COOH-terminal sequence of PRMD7 are omitted. The lengths of proteins from human (np919253), Mus musculus, Macaca mulatta, Gallus gallus, Rattus norvegicus, and Canis familiaris are shown. Identity is indicated by gray shading. Amino acids mutated in the various CMN pedigrees are indicated with rectangles above the aligned sequences.

(179 K)

Zhang, Mol Vis 2007; 13:1674-1679 <>
©2007 Molecular Vision <>
ISSN 1090-0535
