Figure 2 of
Ayala-Lugo, Mol Vis 2007;
**13**:151-163.

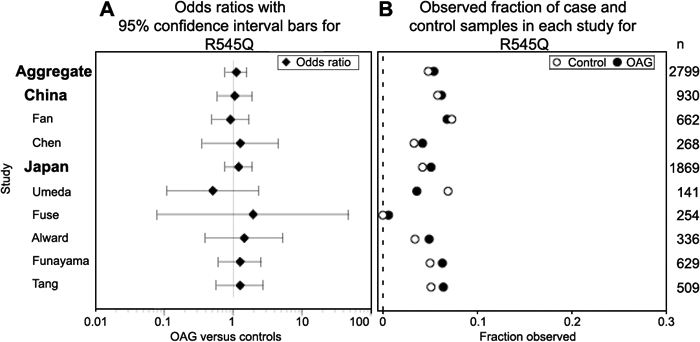

Figure 2. R545Q log odds ratios and allele frequences in Asian population studies

**A** shows the odds ratios with 95% confidence interval bars for
individual Asian studies, and pooled results for Japan, China, and both
in open angle glaucoma (OAG) cases versus controls. Odds ratios and
confidence intervals are fixed effect estimates resulting from the
Mantel-Haenszel method. **B** shows the case (OAG, filled circle)
and control (open circle) proportion observed for each study. Total
sample sizes are listed along the right-hand margin. None of the
differences between case and control frequencies are statistically
significant in a comparison of the odds ratios (as readily observed from
the odds ratio confidence intervals) and frequencies of R545Q mutations
in any of the Asian populations studied.
