Figure 3 of
Yuan, Mol Vis 2007;
13:1555-1561.

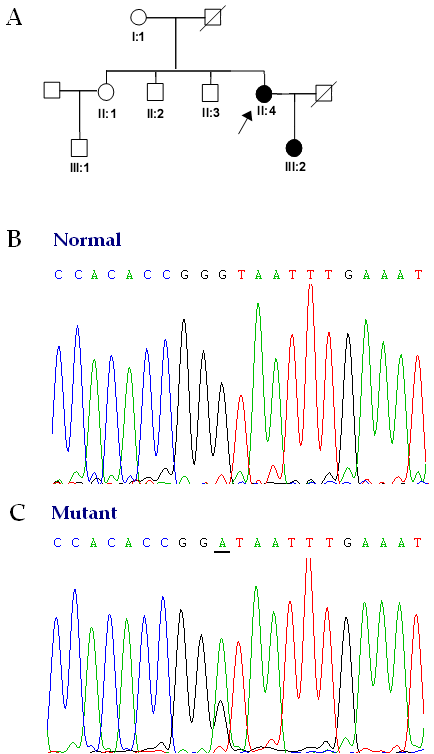

Figure 3. Novel heterozygous mutations
A: Pedigree of Family 2. B: The normal shows the corresponding normal sequence from the unaffected families. C: This section presents the mutation sequence in two patients of Family 2. It is a heterozygous mutation(IVS10+1G>A) detected at the boundary of exon 10 and intron 10 in which A replaces G.
