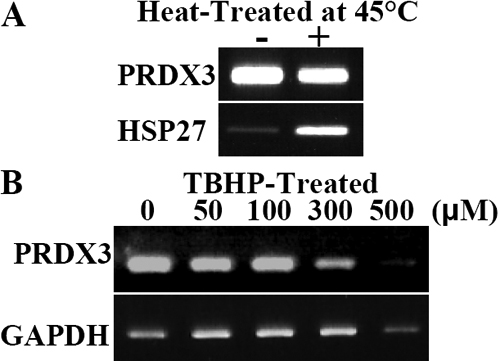

Figure 5. PRDX3 induction in lens cells is specific for H2O2-oxidative stress
(A) Ethidium bromide stained agarose gel showing the levels of PRDX3 and HSP27 transcript in human lens epithelial cells in the absence (-) or presence (+) of heat-shock treatment. RT-PCR was conducted using 100 ng of RNA from each treatment for 25 PCR cycles. (B) Ethidium bromide stained agarose gels showing the level of PRDX3 in human lens epithelial cells exposed to TBHP. RT-PCR was conducted using 100 ng of RNA from each treatment for 25 PCR cycles.
