Figure 4 of
Lee, Mol Vis 2007;
13:1469-1474.

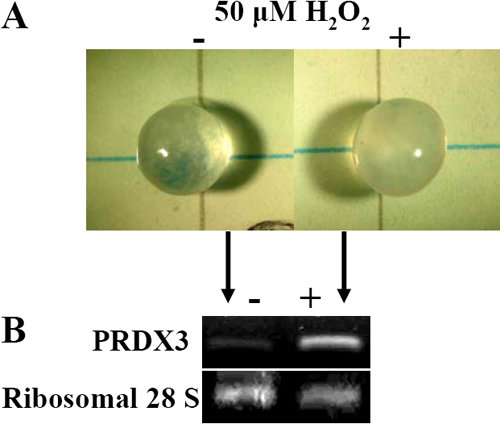

Figure 4. PRDX3 is induced in cultured lenses exposed to H2O2
PRDX3 transcript levels detected in rat lenses cultured in the presence (+) or absence of (-) of 50 μM H2O2 for 1 h and allowed to recover 12 h in serum-free, phenol-free media. (A) Representative H2O2-treated (+) and untreated control lenses (-). (B) Ethidium bromide stained agarose gel showing Rat PRDX3 transcript and corresponding rat ribosomal 28 S RNA control transcript detected by RT-PCR using 40 ng of total RNA and 40 RT-PCR cycles.
