Figure 1 of
Sengupta, Mol Vis 2007;
13:1406-1411.

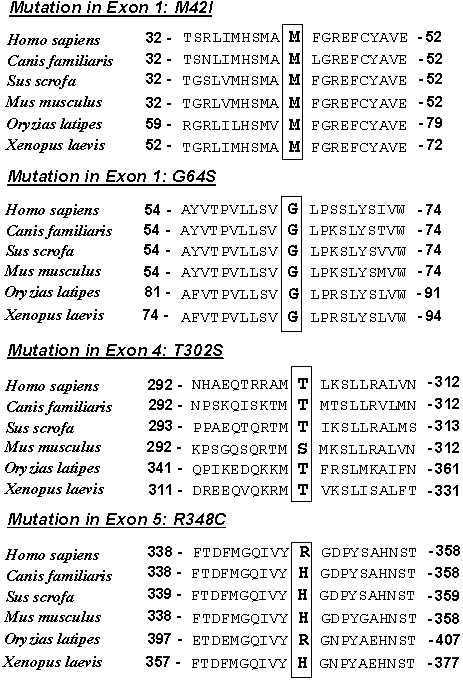

Figure 1. Conservation status of the wild-type amino acids of SLC45A2 across different species
Regions of human SLC45A2 (GenBank NP_057264) harboring the newly characterized mutations were compared with the homologous proteins available for other species by multiple sequence alignment. The bold letters indicate the wild-type amino acids at the location of mutations, and the coordinates of the segments of the peptides selected are also shown.
