Figure 4 of Gonzalez-Huerta, Mol Vis 2007; 13:1333-1338.

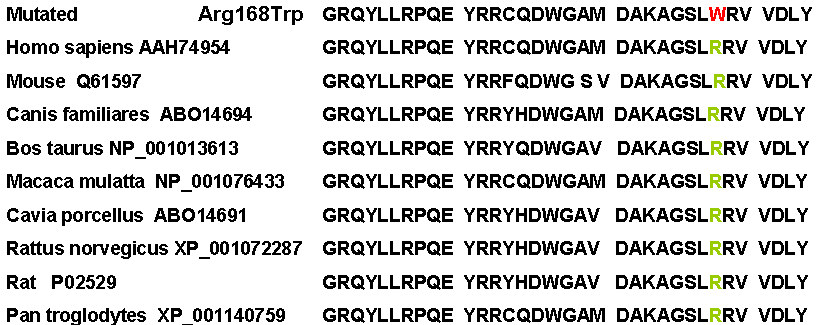

Figure 4. Multiple protein sequence alignments of CRYG in different species

These sequence alignments of the γ-crystallin protein in different species show a high degree of the mutated amino acid conservation. The mutated Arg168Trp sequence indicates the sequence with the mutation (red letter) detected in our family.Only the last 34 amino acids are shown.

(12 K)

Gonzalez-Huerta, Mol Vis 2007; 13:1333-1338 <>
