Figure 2 of Suryanarayana, Mol Vis 2007; 13:1291-1297.

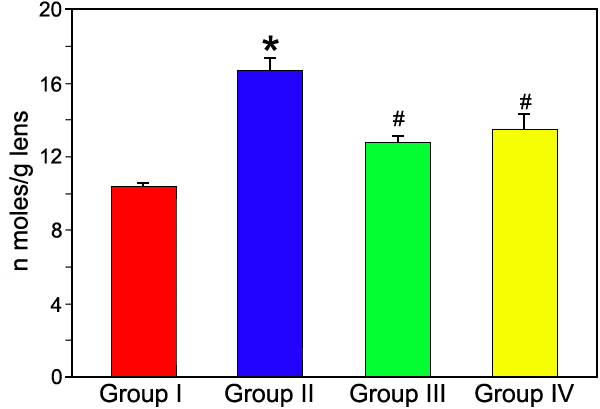

Figure 2. Effect of Emblica and tannoids on lipid peroxidation in the lens

Lipid peroxidation was assessed by estimation of TBARS in the total lens homogenate. TBARS levels, a measure of lipid peroxidation, increased in untreated diabetic (Group II) compared with control (Group I). Emblica (Group IV) and its tannoids (Group III) prevented the alterations in TBARS. Data are mean±SD (n=4). The asterisk above the bar denotes that data are significantly different from Group I and the sharp (hash mark) denotes that data are significantly different from Group II.

(11 K)

Suryanarayana, Mol Vis 2007; 13:1291-1297 <http://www.molvis.org/molvis/v13/a141/>
©2007 Molecular Vision <http://www.molvis.org/molvis/>
ISSN 1090-0535
