Figure 6 of Qiong, Mol Vis 2007; 13:1234-1244.

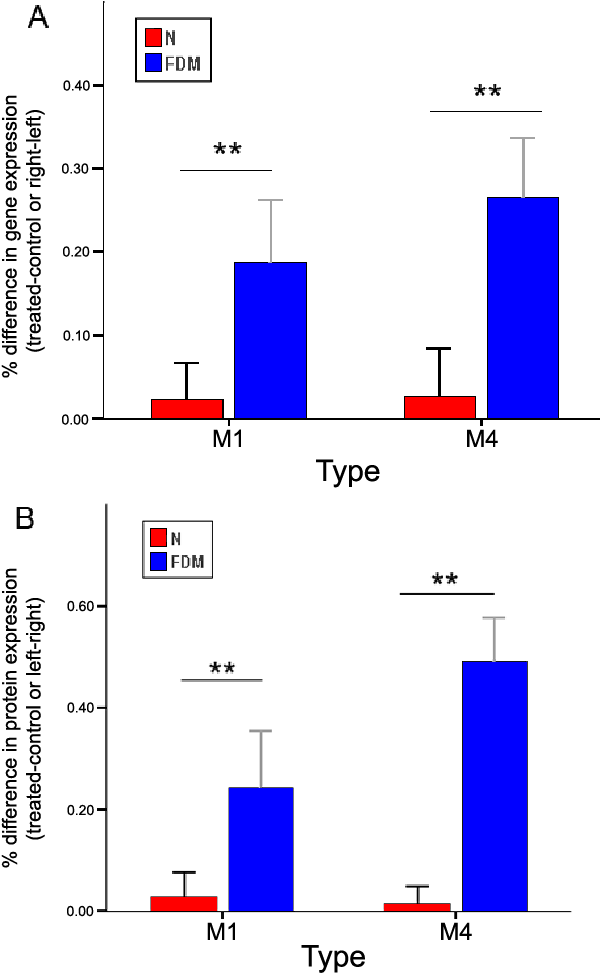

Figure 6. Effects of form-deprived myopia (FDM) on mRNA and protein expression for M1 and M4 in the posterior sclera of guinea pigs

A shows the effect of myopia induction on mRNA expression for subtypes M1 and M4. After 21 days of visual deprivation, significant increases in M1 (+18.67%, p<0.01) and M4 (+26.48%, p<0.01) were found, compared with the internal control eyes in the same animals. B shows the effect of myopia induction on protein expression for the M1 and M4 subtype. After 21 days of visual deprivation, significant increases were found for M1 (+24.25%, p<0.01) and M4 (+49.11%, p<0.01), compared with the internal control eyes of the same animals. Values (mean±standard error of the mean) were normalized for GAPDH and expressed as the percentage change in the treated versus control eyes or left versus right eyes of the normal (N) group (n=5). The double asterisks denote a p<0.01.

(23 K)

Qiong, Mol Vis 2007; 13:1234-1244 <http://www.molvis.org/molvis/v13/a134/>
©2007 Molecular Vision <http://www.molvis.org/molvis/>
ISSN 1090-0535
