Figure 5 of
Dawes, Mol Vis 2007;
13:1181-1197.

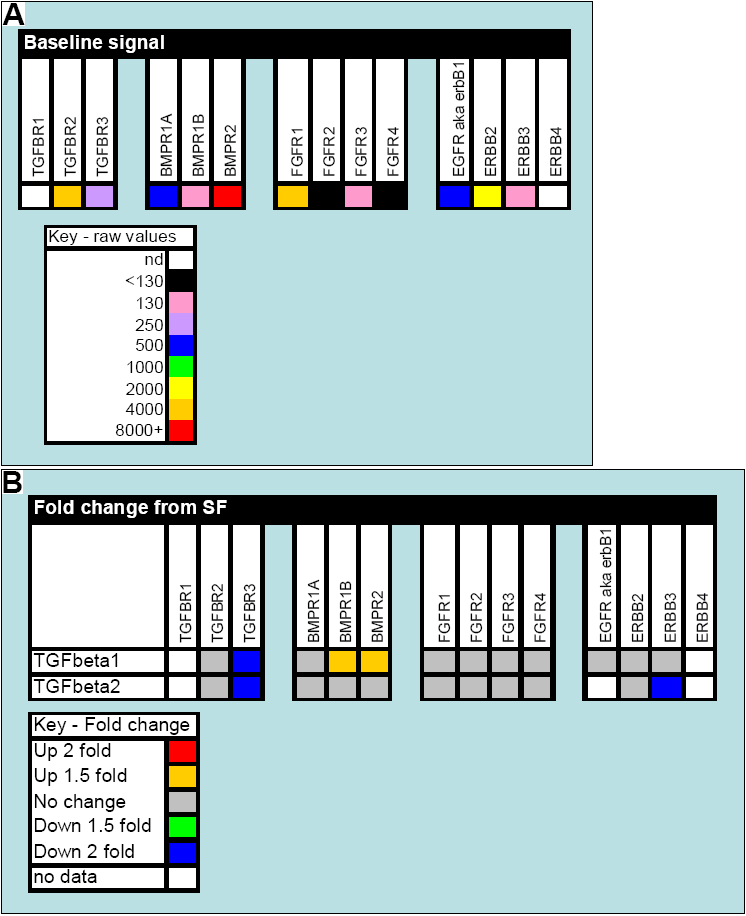

Figure 5. A gene expression profile of selected receptors in FHL 124 cells
A: The baseline signal of receptor gene expression detected in non-stimulated serum-free controls using oligonucleotide microarrays. B: Changes detected in gene expression of receptors following 24 h culture in TGFβ (10 ng/ml) conditions using oligonucleotide microarrays. The data are presented in a colorimetric form to indicate level detected (A) and fold change (B). A key for each is provided.
