Figure 1 of Karring, Mol Vis 2007; 13:997-1004.

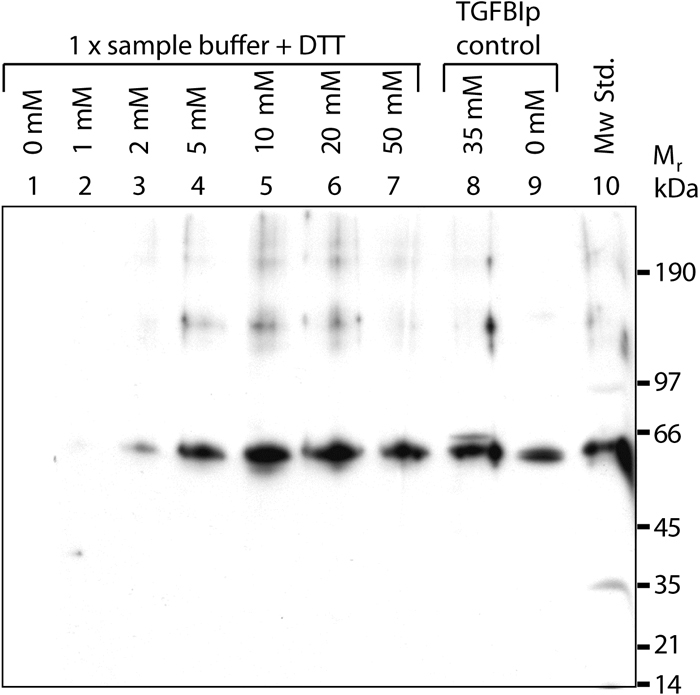

Figure 1. The anti-p68βig-h3 antiserum shows strong reactivity with a protein-contaminant under reducing conditions

The immunoblot shows sample buffer as blank samples containing increasing amounts of DTT. The anti-p68βig-h3 antiserum against residues Val210-His683 of the TGFBIp precursor was used in a dilution ratio of 1:20,000. Lanes 1-7 contain sample buffer with increasing amounts of DTT (0-50 mM). Lane 8 shows 0.16 μg of TGFBIp in sample buffer containing 35 mM DTT. Lane 9 shows 0.16 μg of TGFBIp in sample buffer in the absence of DTT. Lane 10 is the molecular weight standard.

(139 K)
