Figure 1 of Martinez-Navarrete, Mol Vis 2007; 13:949-961.

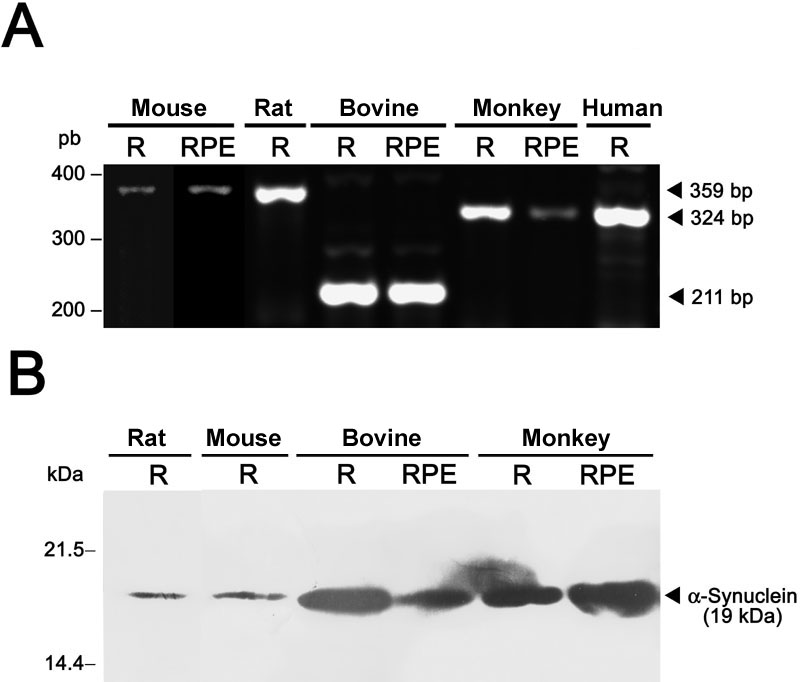

Figure 1. Expression of the α-synuclein gene in the retina of mammals

Reverse transcriptase-polymerase chain reaction (A) and immunoblotting analysis (B) of α-synuclein mRNA and protein expression, respectively, were carried out in the neural retina (R) and retinal pigment epithelium (RPE) fractions from the indicated species. Molecular sizes of bands obtained are given to the right of each panel.

(51 K)
