Figure 1 of Vanita, Mol Vis 2006; 12:518-522.


Figure 1.

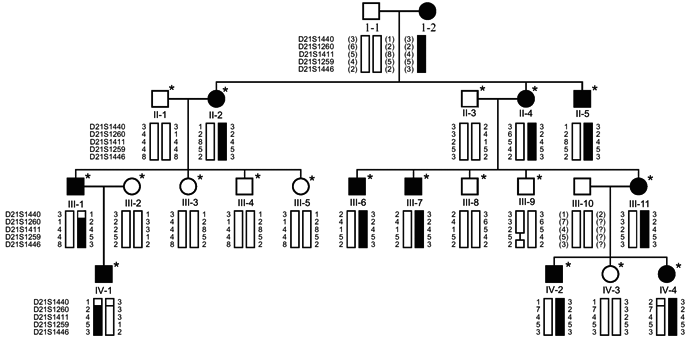

Haplotype analysis of the cataract-microcornea family (case number 612) with chromosome 21 markers. Sequence of markers is from centromere to telomere. Blackened bars indicate the affected haplotype. Inferred haplotypes are in parentheses. Only one haplotype each could be determined in I-2 and III-10. A decisive recombination event in III-1 placed the disease locus distal to D21S1440. Blackened symbols represents affected individuals, open symbols indicate unaffected members, and asterisks designate those who received ophthalmologic examinations.

(38 K)

Vanita, Mol Vis 2006; 12:518-522 <http://www.molvis.org/molvis/v12/a61/>
©2006 Molecular Vision <http://www.molvis.org/molvis/>
ISSN 1090-0535
