Figure 3 of Burdon, Mol Vis 2006; 12:367-371.


Figure 3.

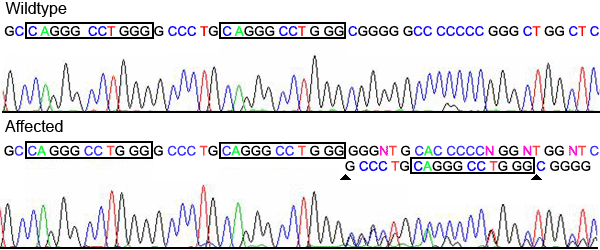

This figure shows the 17 bp insertion at nucleotide 657 of PITX3 mRNA from the start of translation (GenBank NM_005029). The repeated element is boxed. The top line of sequence in the affected individual is the raw base calls made by the sequencing instrument, highlighting the overlayed PCR products (ambiguous base calls) where the insertion begins. The bottom line shows the sequence of the mutated allele, with the duplicated 17 bp indicated by arrow heads.

(52 K)

Burdon, Mol Vis 2006; 12:367-371 <http://www.molvis.org/molvis/v12/a42/>
