Figure 1 of
Spoerri, Mol Vis 2006;
12:32-42.

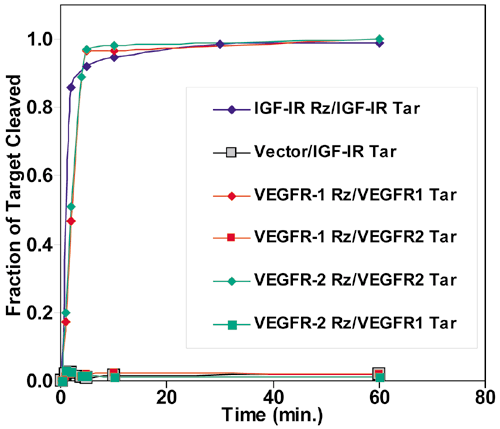

Figure 1. All three ribozymes have similar catalytic activity
Time course of cleavage analysis for VEGFR-1, VEGFR-2, and IGF-IR ribozymes (Rz) on 13-nucleotide synthetic RNA targets (Tar) demonstrates that the catalytic activities of the ribozymes are similar. In addition, this graph demonstrates the specificity of the VEGFR-1 and VEGFR-2 for their respective targets.
