Figure 4 of
Ramirez-Miranda, Mol Vis 2006;
12:318-323.

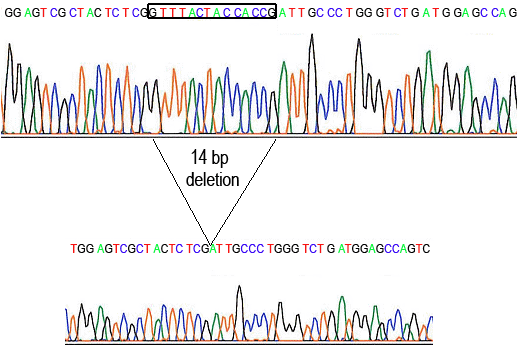

Figure 4. Novel PAX6 deletion in exon 6
Partial DNA sequence of PAX6 exon six from a normal control (top) and from the mutant allele subcloned into the pGEM-T vector (bottom). The sequence of 14 nucleotides deleted is boxed. The deletion introduces a premature TAA stop signal 15 codons downstream.
